Bag manipulator POSIFIL-PF
pneumaticvacuum tubehandling

Bag manipulator - POSIFIL-PF - DALMEC - pneumatic / vacuum tube / handling
Bag manipulator - POSIFIL-PF - DALMEC - pneumatic / vacuum tube / handling
Bag manipulator - POSIFIL-PF - DALMEC - pneumatic / vacuum tube / handling - image - 2
Bag manipulator - POSIFIL-PF - DALMEC - pneumatic / vacuum tube / handling - image - 3
Add to favorites
Compare this product
Go to the DALMEC website for more information

Characteristics

Drive type
pneumatic
Gripping device
vacuum tube
Applications
handling, bag
Configuration
overhead
Other characteristics
ergonomic, ATEX
Domain
industrial
Carrying capacity

50 kg
(110.2 lb)

Working radius

5,000 mm
(196.9 in)

Maximale stroke

1,800 mm
(71 in)

Maximum lifting speed

0.5 m/s
(1.6 ft/s)

Pressure

Min.: 0.7 MPa

Max.: 0.8 MPa

Rotation

300 °, 360 °

Noise level

76 dB

Description

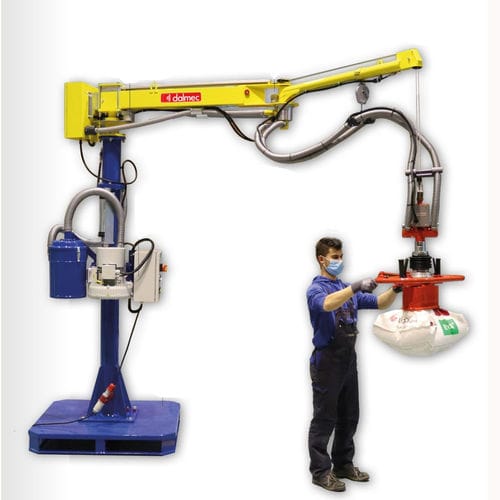

☑ Atex Column ☑ Column ☑ Atex Fixed Overhead ☑ Fixed Overhead ☑ Atex Overhead Running ☑ Overhead Running The POSIFIL Manipulator, equipped with electrical turbine vacuum pump, allows the handling of paper and plastic bags, cardboard boxes, rubber bales, drums etc., using standard or customized suction cups according to the applications. This new vacuum integration on board the Posifil, allows to obtain extraordinary ergonomic benefits when handling bags in working environments with low ceiling heights, allowing the operator to use the Manipulator freely, in the available workspace.
