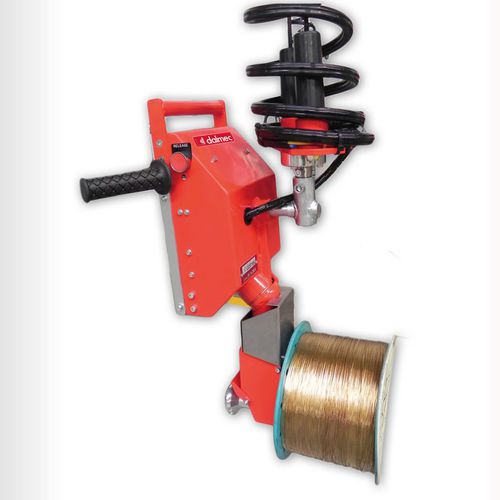

Pneumatic manipulator Minipartner
with gripping toolhandlingload

pneumatic manipulator
pneumatic manipulator
pneumatic manipulator
pneumatic manipulator
pneumatic manipulator
pneumatic manipulator
pneumatic manipulator
pneumatic manipulator
pneumatic manipulator
Add to favorites
Compare this product


Characteristics

Drive type
pneumatic
Gripping device
with gripping tool
Applications
handling, load
Other characteristics
overhead trolley, balanced, with cable lift
Field
industrial
Carrying capacity

80 kg, 170 kg (176.4 lb)

Description

Model MPS Max weight capacity: 80 Kg Max vertical lifting speed: 0,5 meters / second Vertical lift: 1800 mm Control system: solely pneumatic Supply: filtrated compressed-air (40 µm), not lubricated Working pressure: 0.7 ÷ 0.8 Mpa Working temperature: from +0° to +45° C Noise level: <70 dB Consumption: from 10 Nl ÷ 20 Nl per working cycle Rotation: ∞360° on tooling axis Model MPS Plus 6 Max weight capacity: 170 Kg – (220 kg Plus 8) Max vertical lifting speed: 0,5 meters / second Vertical lift: 2000 mm Control system: solely pneumatic Supply: filtrated compressed-air (40 µm), not lubricated Working pressure: 0.7 ÷ 0.8 Mpa Working temperature: from +0° to +45° C Noise level: <70 dB Consumption: from 20 Nl ÷ 80 Nl per working cycle Rotation: ∞360° on tooling axis MANIPULATOR MINIPARTNER WITH DOUBLE CABLE Pneumatic Manipulator MINIPARTNER with double cable equipped with simple gripping tools, allows the handling of light loads in a weightless condition, throughout the working area. The gripping tool is connected to the balancing group by two independent steel cables to guarantee max safety. Generally overhead mounted with double track system, it offers an easy translation in order to cover a long working area. OPERATION A pneumatic cylinder fed with compressed-air, combined with a transmission cables system provides balance to the load weight applied. The cylinder force is controlled through two pneumatic circuits purposely arranged: the first one always keeps the weight system balanced; the second one provides to always keep the weight load balanced. The operator can change the load level applying a minimum force on the gripping tool or directly on the load.
