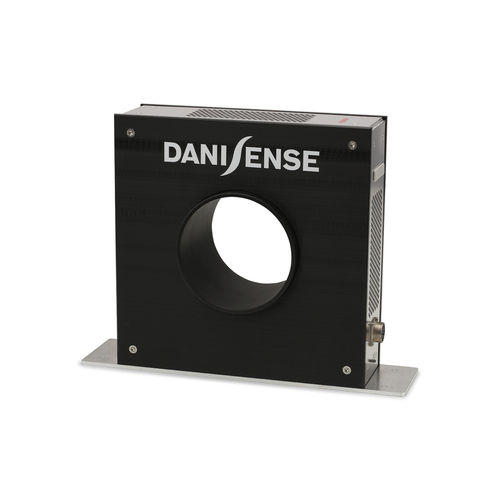

Fluxgate current transducer DR5000IMfixedDCAC
Add to favorites
Compare this product
Characteristics
- Technology
- fluxgate
- Mounting
- fixed
- Electrical characteristics
- AC, DC
- Other characteristics
- high-accuracy, through-hole, monitoring, solid-core
- Output
- current output
- Primary current
5,000 A, 8,000 A
Description
• Linearity error maximum 1 ppm
• 4mm banana jack for secondary current
• Transducer core optimized for high level of immunity against external magnetic fields
• Operating temperature: Transducer head 0-70°C - Electronics 0-45°C
• Turns ratio 1:2500
• Aperture diameter 150 mm
• 2U 19" Control unit with universal mains supply 100V-240V
Ultra-stable, high precision (ppm class) fluxgate technology DR Series current transducer for non-intrusive, isolated DC and AC current measurement up to 8000A.
Applications
• MPS for particles accelerators
• Stable power supplies
• Precision drives
• Batteries testing and evaluation systems
• Power measurement and power analysis
• Current calibration purposes
Catalogs
DR5000IM
9 Pages
