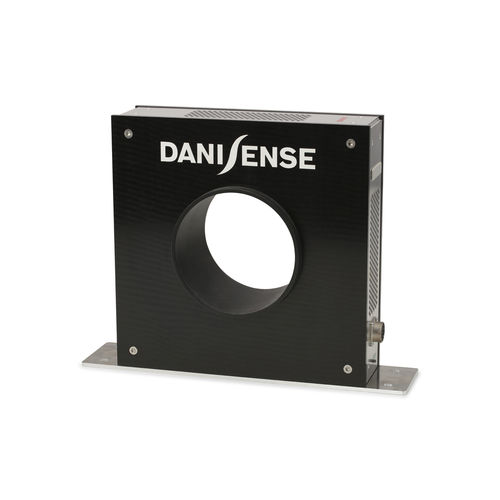

Fluxgate current transducer DR10000IMfixedDCAC
Add to favorites
Compare this product
Characteristics
- Technology
- fluxgate
- Mounting
- fixed
- Electrical characteristics
- AC, DC
- Other characteristics
- high-accuracy, through-hole, monitoring, solid-core
- Output
- current output
- Primary current
7,000 A, 10,000 A
Description
• Linearity error maximum 1 ppm
• 4mm banana jack for secondary current
• Transducer core optimized for high level of immunity against external magnetic fields
• Operating temperature: Transducer head 0-70°C - Electronics 0-45°C
• Turns ratio 1:2500
• Aperture diameter 140 mm
• 2U 19" Control unit with universal (100-240V AC 50/60Hz) AC input voltage or 120-370V DC input voltage
• Danisense advanced sensor protection circuit "ASPC"
Ultra-stable, high precision (ppm class) fluxgate technology DR Series current transducer for non-intrusive, isolated DC and AC current measurement up to 11000A.
Applications
• MPS for particles accelerators
• Stable power supplies
• Precision drives
• Batteriy testing and evaluation systems
• Power measurement and power analysis
• Current calibration purposes
Catalogs
DR10000IM
9 Pages
