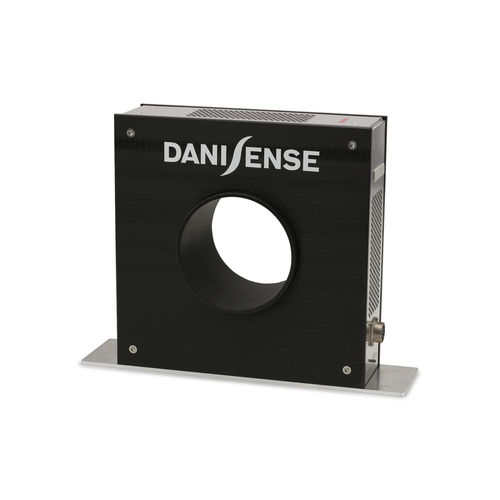

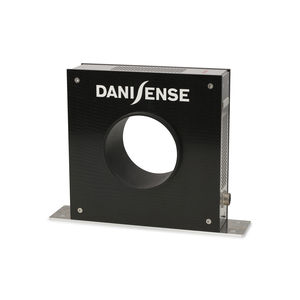

Fluxgate current transducer DR5000UX-10V/7500AfixedACDC
Add to favorites
Compare this product
Characteristics
- Technology
- fluxgate
- Mounting
- fixed
- Electrical characteristics
- AC, DC
- Other characteristics
- precision, through-hole
- Primary current
Min.: 0 A
Max.: 8,000 A
Description
Ultra-stable, high precision (ppm class) fluxgate technology DS Series current
transducer for non-intrusive, isolated DC and AC current measurement up to 8000A
Features
Linearity error maximum +/- 7ppm
3 pin XLR mini connector for voltage output
Transducer core optimized for high level of immunity
against external magnetic fields
Operating temperature
Transducer head 0-60°C
Electronics 0-45°C
Ratio 1V/750A
Aperture diameter 150 mm
2U 19” Control unit with universal (100-240V AC 50/60Hz)
AC input voltage or 120-370V DC input voltage
Danisense advanced sensor protection circuit “ASPC”
Ultra-stable, high precision (ppm class) fluxgate technology DS Series current
transducer for non-intrusive, isolated DC and AC current measurement up to 8000A
Applications:
MPS for particles accelerators
Stable power supplies
Precision drives
Batteries testing and evaluation systems
Power measurement and power analysis
Current calibration purposes
