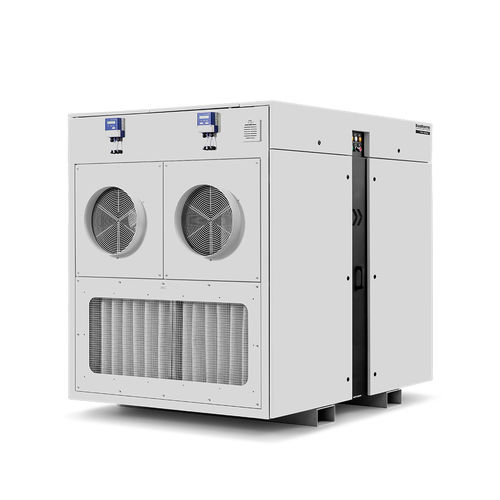

Desiccant dehumidifier TTR 10000

air

The TTR 10000 is an ideal solution for high dry air demand in cold environments with low dew points. It has a dehumidification performance of 1,322 kg per day and can deliver 9,800 cubic metres of dry air per hour at a static pressure of 300Pa. This Germanmade dehumidifier is well-suited for permanent dry keeping, gas dehumidification, and dry air production in the chemical, pharmaceutical, and food industries, as well as mechanical engineering. It is also effective in protecting machines, inventory, and buildings from corrosion, condensation, and mould formation, particularly in water processing facilities or electrical control centres. Key features Housing made of powder-coated, galvanized sheet steel Integrated G4 equivalent air filters as Z-line filters, separately for process and regeneration air Filter monitoring with warning light Rotor rotation control Potential-free signal contacts for maintenance/filter change, fault, operation ON/OFF Directly driven high-performance EC fans with manual speed adjustment integrated in the housing (no additional throttle valves required), separately for process and regeneration air Flowmatic S, separate electronic fan speed control for process and regeneration air, controlled to a constant volumetric flow or pressure depending on the processrelated target value, control signal 0…10 V or 4–20 mA Silica gel sorption rotor with internal purging sector for heat recovery and automatically adjusting rotor seal kit Control with four-line plain text display Temperature-controlled rundown period
