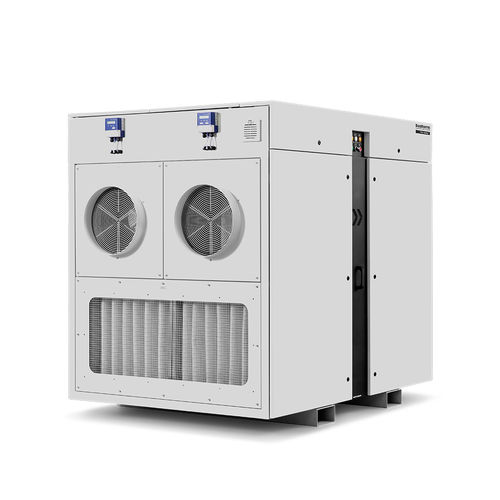

Desiccant dehumidifier TTR 12000

air

The TTR 12000 is a German-manufactured, highly reliable and powerful desiccant dehumidifier suitable for various industries such as chemical, pharmaceutical, and food production, mechanical engineering, and water processing facilities or electrical control centres. It can also protect machines, inventory, and buildings from corrosion, condensation, and mould formation. The TTR 12000 has a dehumidification performance of 1,596kg per day, a nominal air volume of 11,800 cubic metres of dry air per hour at a static pressure of 300Pa, making it ideal for high dry air demand in cold environments with low dew points. Key features Housing made of powder-coated, galvanized sheet steel Integrated G4 equivalent air filters as Z-line filters, separately for process and regeneration air Filter monitoring with warning light Rotor rotation control Potential-free signal contacts for maintenance/filter change, fault, operation ON/OFF Directly driven high-performance EC fans with manual speed adjustment integrated in the housing (no additional throttle valves required), separately for process and regeneration air Flowmatic S, separate electronic fan speed control for process and regeneration air, controlled to a constant volumetric flow or pressure depending on the processrelated target value, control signal 0…10 V or 4–20 mA Silica gel sorption rotor with internal purging sector for heat recovery and automatically adjusting rotor seal kit Control with four-line plain text display Temperature-controlled rundown period
