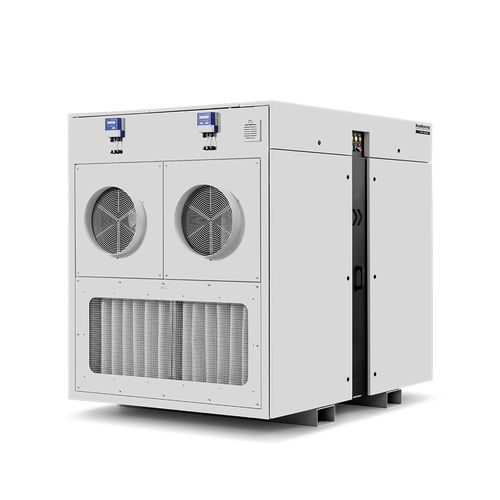

Desiccant dehumidifier TTR 13500

air

The TTR 13500 has a dehumidification performance of 1,790kg per day and can deliver 13,300 cubic metres of dry air per hour at a static pressure of 400Pa. It is ideal for situations requiring high levels of dry air in cold environments with low dew points. This makes it suitable for a range of industries including chemical, pharmaceutical, and food production, as well as for protecting machines, inventory, and buildings from damage caused by corrosion, condensation, and mould formation. It is especially useful in water processing facilities and electrical control centres. Key features Housing made of powder-coated, galvanized sheet steel Integrated G4 equivalent air filters as Z-line filters, separately for process and regeneration air Filter monitoring with warning light Rotor rotation control Potential-free signal contacts for maintenance/filter change, fault, operation ON/OFF Directly driven high-performance EC fans with manual speed adjustment integrated in the housing (no additional throttle valves required), separately for process and regeneration air Flowmatic S, separate electronic fan speed control for process and regeneration air, controlled to a constant volumetric flow or pressure depending on the process related target value, control signal 0…10 V or 4–20 mA Silica gel sorption rotor with internal purging sector for heat recovery and automatically adjusting rotor seal kit Control with four-line plain text display Temperature-controlled rundown period
