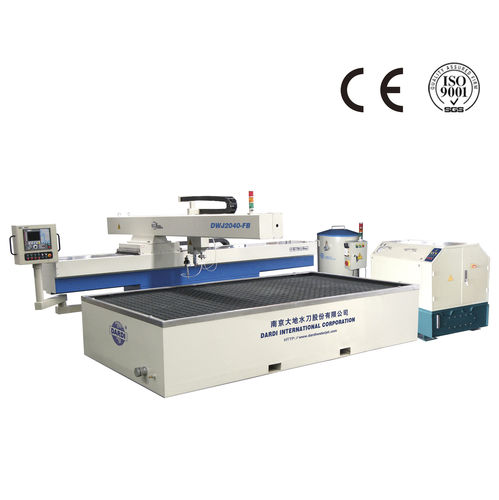

metal cutting machine / for stone / for glass / for ceramics
DWJ2040 FB

{{requestButtons}}

Characteristics

  • Material:

    for metal, for stone, for glass, for ceramics

  • Technology:

    waterjet

  • Control type:

    CNC

  • Applications:

    for industrial applications

  • Other characteristics:

    3-axis

  • X travel:

    Max.: 2,000 mm (79 in)

  • Y travel:

    Max.: 4,000 mm (157 in)

  • Cutting speed:

    Max.: 20,000 mm/min (13.123 in/s)

Description

Name:
Flying-arm2.0*4.0m Water Jet Cutter Motion System with CE,ISO,SGS certificated
Cutting area: 2.0m×4.0m×0.15m

Parts:
CNC system, Flying-arm cutting platform, high pressure generator, sand hopper, oil-cooling tower, portable pulse controller, attached accessories, complimentary accessories and special tools.

Applications:

CNC water jet cutting machine can flexibly process (cut off, engrave, make hole, drill) virtually all materials with consistent quality. It has found great application in  glass, glass craftetc..

Parameters:
Form of machine: Cantilever type
Running speed:  0-10m/min
Control system:  servo motor(YASKAWA Japan),ESA CNC control system
Control accuracy:  ±0.02mm
Cutting accuracy:  ±0.1mm
Bevel angle: ±5°
C axis rotating speed: 3600°/min
Max pressure:  400Mpa(60000psi)
Flow rate of UHP water:  3.8L/min
Power of oil pump:  30KW/37KW
Power supply: 220V/380V/415V 50Hz/60Hz

Our Advantages:
25 years of R&D experience
6.6 acre production base
SGS, CE, ISO certificates
OEM waterjet cutting service
Globe service office
Lower cost
