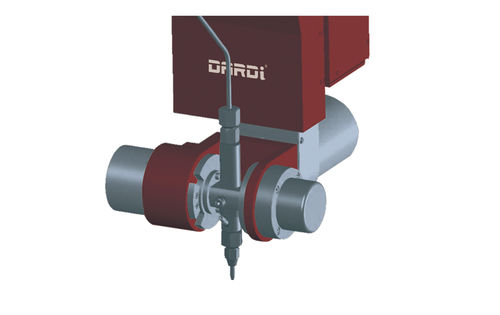

Water-jet cutting machine X-5 AB

for stonefor ceramicsCNC

The newly-developed automatic jigsaw water cutter of Dardi is equipped with a special design of bevel edge control mechanism (AB 5-axis), to achieve the reverse cutting bevel edge for stone ceramic cutting. This eliminates the most labor-intensive and time-consuming manual grinding with the most serious dust and noise pollutions, and at the same time realizes the perfect seamless mosaic of stone ceramics. This not only improves the quality of jigsaw, but also greatly improves the cutting efficiency and saves the production costs. The new automatic jigsaw water cutter of Dardi adopts the new intelligent special cutting software for cutting patterns, which can directly acquire the cutting patterns by scanning, and then automatically select the jigsaw effect through the built-in automatic jigsaw coloring module. The automatic graphic disassembly and layout nesting modules can save the materials and improve the drawing efficiency to the utmost extent. Rotary axis (B-axis) rotation range: ±10°; Bending axis (A-axis) adjustment range: ±10°; Cutting accuracy: ±0.15mm; Drive mode: servo motor drive; Control method: digital control.
