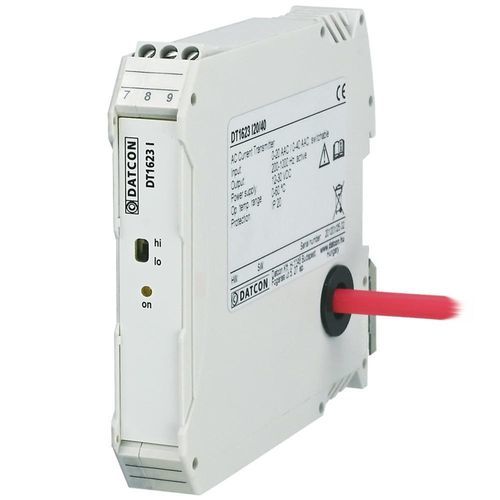

Transformer current transmitter DT1623 Ix

DIN railACthrough-hole

Product features

• 3 versions, 6 measuring ranges:
• 0–5 AAC / 0–1 AAC *
• 0–20 AAC / 0–10 AAC *
• 0–60 AAC / 0–40 AAC *
• * measuring range selectable with switch
• True RMS converter
• CAT III measurement category
• 400-2000 Hz frequency output
• 0.5% accuracy
• 24 VDC power supply
• 17.5 mm wide, rail-mountable

Product description
The DT1623 Ix… AC current transmitters produce a square wave output with a frequency range of 400–2000 Hz, proportional to the true root mean square (TRMS) of the input signal, for the processing unit.
By using the frequency output – in the case of a PLC signal processor – a costly analog input can be replaced with a counter input.
The devices can be operated with a 24 VDC power supply.
The inputs of the transmitters are separated from the network to be measured by a broadband measuring transformer.
The inputs comply with the requirements of the CAT III measurement category.
The devices can be ordered in three versions with 6 measuring ranges, according to the type table above. Within the given type, the measuring range can be selected with the front-panel “Hi-Lo” switch.
The inputs can be permanently overdriven up to twice the nominal measuring range.
In the I5/1 measuring range version, the current to be measured can be connected via a terminal block, in the higher measuring ranges, the current to be measured wire must be threaded through the opening in the box.
A green indicator on the front panel indicates the operating status of the device, a continuous light indicates correct operation, a flashing light indicates an error status.
The device is designed as a terminal block, width: 17.5 mm.
The transmitters fully comply with the requirements of the EN 60688 standard.

Technical specifications
Safety data: The input and output connection terminals are separated from each other, the separation complies with the requirements of EN 61010-1, taking into account the following:

• Pollution level: 2
• Measurement category: CAT III

Input parameters:

• Input signal: AC current
• Measuring ranges: see table on first page
• Conversion characteristics: true RMS
• Continuous overcurrent: 2 × I
• Short time overcurrent (1 sec): 20 × I
• Input consumption: 0.25 VA (max.)
• Frequency range: 40–400 Hz

Output parameters:

• Output signal: frequency (square wave)
• Output range: 400–2000 Hz
• Settling time: 500 ms (10–90%)
• Output signal error: < 0.5%
• Output signal levels: Lo: < 0.2 V Hi: > 21 V (Rt: 2–20 kohm)
• Temperature coefficient: < 25 ppm / °C (0–60 °C)
• Frequency dependence: 0.3% max. (40–400 Hz)
• Supply voltage dependence: practically zero

Power supply:

• Supply voltage: 24 VDC ± 10%

Ambient conditions:

• Operating temperature range: 0–60 °C (-20–60 °C, on customer request)
• Relative humidity: 90% (max., non condensing)
• Place of installation: cabinet
• Recommended mounting position: vertical (horizontal rail position)

Electromagnetic compatibility (EMC): Accordance with the standard EN 61326-1:

• Noice emission: Group 1, Class B
• Immunity: Industrial area

General data:

• Housing: TS-35 rail mounting housing, material: polyamide PA6.6
• Connection (output): screw terminal
• Connection (input): screw terminal < 10 AAC; through connection > 10 AAC
• Connection cable 0.25–2.5 mm2
• Through connection: 10 mm2 (≤ 40 AAC); 16 mm2 (> 40 AAC)
• Dimensions: 17.5 × 104 × 115 mm (width × height × depth)
• Weight: 0.100...0.125 kg
• Protection: IP20

Detailed information is in operating instructions. The Manufacturer maintains the right to change the technical data!
