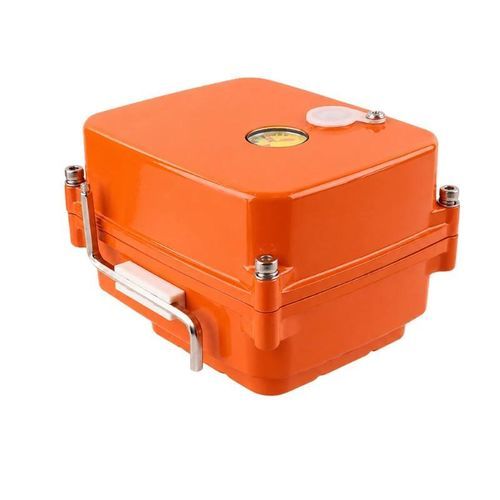

Electric valve actuator BBVA-ON

electromechanicalmotorizedrotary

Product Overview
The BBVA-ON is an electric on/off actuator for 0–90° rotary valves, designed to automate opening and closing of ball, butterfly, diaphragm and similar valves. Available output torque ranges from 10 to 200 N·m to cover small precision valves through high-torque industrial valves. Housing options, shaft sizes and control interfaces are selectable to match installation and process requirements.

Key Features

• Output torque: 10–200 N·m
• Standard rotation: 0–90° for on/off operation
• Active and passive on/off control inputs
• Power: DC 24 V or AC 220 V
• DC brushless motor with metal gear transmission
• Optional open/closed position signals and position feedback
• Stall and overload protection
• Protection rating IP65
• Optional power-failure reset, RS485, wireless and 4G control
• Multi-turn and fast-acting variants for selected classes

Typical Applications

• Motorized two-way, three-way and four-way ball valves
• Motorized butterfly and diaphragm valves
• Stainless-steel, brass and UPVC valve bodies
• Automatic on/off control of industrial pipelines
• On/off control of water, gases and process fluids
• Equipment-mounted valves and automation panels

General Specifications
Control mode — Active or passive on/off control
Output torque — 10–200 N·m
Rotation angle — 0–90°
Power supply — DC 24 V or AC 220 V
Operating time — 6–20 s depending on torque configuration
Output shaft — 9×9, 11×11, 14×14, 17×17 mm
Standby power — ≤5 W
Operating temperature — −25 to 55°C (extreme −45 to 75°C)
Protection rating — IP65
Housing material — Plastic or aluminum alloy
Color — Orange-red


Torque and Housing Options

• 10 N·m — Operating time 6 s; Output shaft 9×9 mm; Housing: Plastic; Weight 0.2 kg; Dimensions 69×61×58 mm
• 15–18 N·m — 8 s; Output shaft 9×9 mm; Housing: Aluminum alloy; Weight 0.38 kg; Dimensions 69×61×58 mm
• 30–45 N·m — 10 s; Output shaft 11×11 mm; Housing: Aluminum alloy; Weight 0.87 kg; Dimensions 78×57×80 mm
• 50–75 N·m — 15 s; Output shaft 14×14 mm; Housing: Aluminum alloy; Weight 1.0 kg; Dimensions 110×90×82 mm
• 100 N·m — 10 s; Output shaft 17×17 mm; Housing: Aluminum alloy; Weight 3.6 kg; Dimensions 143×110×140 mm
• 200 N·m — 20 s; Output shaft 17×17 mm; Housing: Aluminum alloy; Weight 3.6 kg; Dimensions 143×110×140 mm

Power Data

• 10–45 N·m — DC24 V rated ≤10 W; AC220 V rated ≤15 W; DC24 V stall ≤25 W; AC220 V stall ≤30 W
• 50–75 N·m — DC24 V rated ≤15 W; AC220 V rated ≤20 W; DC24 V stall ≤30 W; AC220 V stall ≤35 W
• 100–200 N·m — DC24 V rated ≤35 W; AC220 V rated ≤40 W; DC24 V stall ≤60 W; AC220 V stall ≤70 W

Optional Functions

• Open and closed position signals — Available across full torque range
• Power-failure reset — Available for selected torque configurations
• RS485 communication — Available for 100–200 N·m
• Wireless remote control — Available for 100–200 N·m
• 4G wireless control — Available for 100–200 N·m
• Multi-turn operation — Up to 5 turns (30–45 N·m); up to 10 turns (50–75 N·m); up to 7 or 68 turns (100–200 N·m)
• Fast-acting operation — Available by torque class

Fast-Acting Configurations

• 10 N·m class — 3 s / 5 N·m
• 30–45 N·m class — 5 s / 10 N·m; 15 s / 30 N·m
• 50–75 N·m class — 2.5 s / 10 N·m; 5 s / 20 N·m; 10 s / 30 N·m
• 100–200 N·m class — 2.5 s / 30 N·m

Selection Guide
Select an actuator with a safety margin above the valve's maximum operating torque. Confirm required rotation angle, operating time, output-shaft size, available installation space, power supply and control signal. Choose position feedback, power-failure reset, communication, wireless control and multi-turn or fast-acting options as needed.

Technical specifications

• Model/Series: BBVA-ON
• Control mode: Active or passive on/off control
• Output torque: 10–200 N·m
• Rotation angle: 0–90°
• Power supply: DC 24 V or AC 220 V
• Motor: DC brushless motor with metal gear transmission
• Operating time: 6–20 s depending on torque; fast variants down to 2.5–3 s for selected classes
• Output shaft sizes: 9×9, 11×11, 14×14, 17×17 mm
• Standby power: ≤5 W
• Operating temperature: −25 to 55°C (extreme −45 to 75°C)
• Protection rating: IP65
• Housing: Plastic or aluminum alloy
• Weight and dimensions: see torque/housing options (range 0.2–3.6 kg)
• Optional: open/closed signals, power-failure reset, RS485, wireless, 4G, multi-turn, fast-acting
