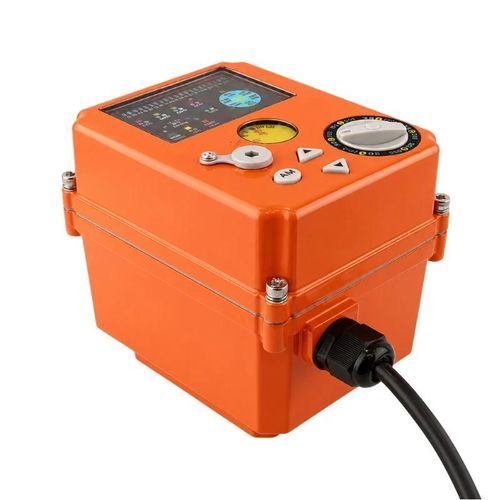

Electric valve actuator BBVA-MOD

motorizedrotarymulti-turn

Product Overview
The BBVA-MOD is designed for continuous position control of ball valves, butterfly valves, diaphragm valves, and other rotary valves. It accepts a 4–20 mA or 0–10 V control signal, positions the valve according to the setpoint, and provides a corresponding valve-position feedback signal. It is suitable for automatic regulation of gas and liquid flow. The actuator covers an output torque range from 10 to 200 N·m and is available with OLED, LED, or LCD display configurations. The panel provides valve position, setpoint, operating status, and fault information, together with manual operation, valve-position calibration, and control-parameter settings.

Key Features

• Output torque range from 10 to 200 N·m
• 4–20 mA or 0–10 V proportional control
• 4–20 mA or 0–10 V valve-position feedback
• Continuous 0–90° position control
• ±0.5% basic error and hysteresis below 0.3%
• Adjustable positioning accuracy from 0.2% to 3.6%
• OLED, LED, or LCD display options
• Manual operation, valve-position calibration, and status display
• Optional RS485 and open/closed position signals
• Wireless, 4G, power-failure reset, and multi-turn options for selected configurations

Typical Applications

• Motorized modulating ball valves
• Motorized modulating butterfly valves
• Motorized modulating diaphragm valves
• Gas and liquid flow regulation
• Remote valve-position control
• Industrial process control and equipment automation
• Stainless-steel, brass, and UPVC valves

General Specifications
Parameter — Specification
Control mode — Modulating control
Input signal — 4–20 mA or 0–10 V
Output feedback — 4–20 mA or 0–10 V
Output torque — 10–200 N·m
Rotation angle — 0–90°
Power supply — DC 24 V or AC 220 V
Operating time — 8–20 s, depending on torque configuration
Basic error — ±0.5%
Hysteresis — <0.3%
Positioning accuracy — Adjustable from 0.2% to 3.6%
Standby power — ≤5 W
Operating temperature — −25 to 55°C
Extreme temperature range — −45 to 75°C
Protection rating — IP65; IP55 for selected internal-display configurations
Housing material — Plastic or aluminum alloy

Torque and Housing Options
Torque configuration — Operating time — Output shaft — Display — Weight — Dimensions
10 N·m — 8 s — 9×9 mm — OLED — 0.2 kg — 69×61×58 mm
15–18 N·m — 8 s — 9×9 mm — OLED — 0.38 kg — 69×61×58 mm
30–45 N·m — 10 s — 11×11 mm — OLED — 0.87 kg — 78×57×80 mm
50–75 N·m — 15 s — 14×14 mm — Internal OLED or color LCD — 1.0 kg — 110×90×82 mm
100 N·m — 10 s — 17×17 mm — LED or color LCD — 3.6 kg — 143×110×140 mm
200 N·m — 20 s — 17×17 mm — LED or color LCD — 3.6 kg — 143×110×140 mm

Power Data
Torque range — DC 24 V rated loaded power — AC 220 V rated loaded power — DC 24 V stall power — AC 220 V stall power
10–45 N·m — ≤10 W — ≤15 W — ≤25 W — ≤30 W
50–75 N·m — ≤15 W — ≤20 W — ≤30 W — ≤35 W
100–200 N·m — ≤35 W — ≤40 W — ≤60 W — ≤70 W

Control and Communication Options
Configuration item — Available options
Input signal — 4–20 mA or 0–10 V
Output feedback — 4–20 mA or 0–10 V
Open and closed position signals — Available across the full torque range
RS485 — Available across the full torque range
Wireless remote control — Available for selected 30–200 N·m configurations
4G wireless control — Available for selected 30–200 N·m configurations
Power-failure reset — Available for selected 50–200 N·m configurations
Multi-turn operation — Up to 5 turns for 30–45 N·m; up to 10 turns for 50–75 N·m; up to 7 or 68 turns for 100–200 N·m

Display Options
Torque range — Display type
10–45 N·m — OLED display
50–75 N·m — Internal OLED or color LCD
100–200 N·m — LED or color LCD
The display can show actual valve position, position setpoint, operating status, and fault information. The available display type depends on the selected torque and control configuration.

Selection Guide
Selection should consider the maximum valve regulating torque, control signal, feedback signal, positioning accuracy, operating time, output shaft, and available installation space. Select the required RS485, wireless control, power-failure reset, multi-turn operation, and display options as part of the actuator configuration.

Caractéristiques / Spécifications techniques

• Model: BBVA-MOD
• Control mode: Modulating control
• Input signal: 4–20 mA or 0–10 V
• Output feedback: 4–20 mA or 0–10 V
• Output torque: 10–200 N·m (configurable)
• Rotation angle: 0–90°
• Power supply: DC 24 V or AC 220 V
• Operating time: 8–20 s (depending on torque)
• Basic error: ±0.5%
• Hysteresis: <0.3%
• Positioning accuracy: Adjustable 0.2%–3.6%
• Standby power: ≤5 W
• Operating temperature: −25 to 55°C (extreme −45 to 75°C)
• Protection rating: IP65 (IP55 for selected internal-display configurations)
• Housing material: Plastic or aluminum alloy
• Display options: OLED, LED, or color LCD depending on torque
• Communications/options: RS485, open/closed signals, wireless, 4G, power-failure reset, multi-turn
• Weight & dimensions: Vary by torque configuration (see torque table for details)
