Single-axis accelerometer BBVM-RS100

piezoelectricIEPEshear

Product overview

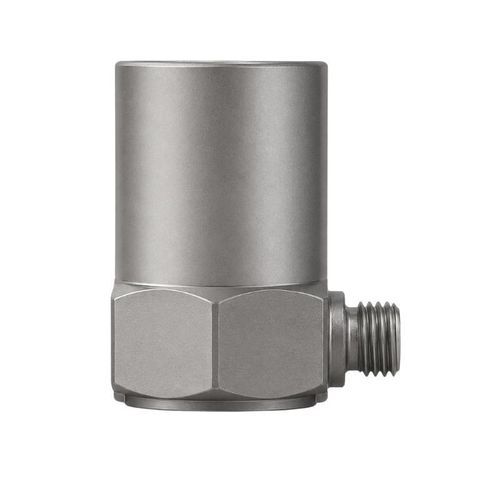

The BBVM-RS100 is a single-axis IEPE piezoelectric accelerometer with a side-exit connection, engineered for vibration measurement where overhead clearance is limited or the cable must run parallel to the mounting surface. It uses a piezoelectric ceramic sensing element in a shear-mode design, a sealed metal housing and integrated IEPE signal conditioning. The standard model has 100 mV/g sensitivity and ±50 g range; additional sensitivity and high‑g options are available.

Key features

• Side-exit connection for low-clearance installations
• Integrated IEPE signal conditioning (constant-current excitation)
• Standard sensitivity: 100 mV/g
• Standard measurement range: ±50 g
• Frequency response up to 12 kHz (standard model)
• M5 mounting thread and M5 output connection
• Designed for long-distance signal transmission (up to 300 m)
• Multiple sensitivity and range configurations available

Available sensitivity and range options

• BBVM-RS10 — 10 mV/g — ±500 g — 1–10,000 Hz
• BBVM-RS20 — 20 mV/g — ±250 g — 1–10,000 Hz
• BBVM-RS25 — 25 mV/g — ±200 g — 1–10,000 Hz
• BBVM-RS50 — 50 mV/g — ±100 g — 0.5–12,000 Hz
• BBVM-RS100 — 100 mV/g — ±50 g — 0.3–12,000 Hz
• BBVM-RS500 — 500 mV/g — ±10 g — 0.2–8,000 Hz
• BBVM-RS1000 — 1,000 mV/g — ±5 g — 0.2–8,000 Hz

Standard-model performance specifications

• Measurement: Vibration acceleration
• Sensitivity: 100 mV/g (standard model)
• Measurement range: ±50 g (standard model)
• Frequency response: 0.3–12,000 Hz (standard model)
• Transverse sensitivity: ≤5% (≤3% typical)
• Discharge time constant: ≥0.2 s

Electrical specifications

• Sensor type: IEPE (integrated signal conditioning)
• Supply voltage: 18–30 VDC
• Constant-current excitation: 2–10 mA (typical operating: 24 VDC, 4 mA)
• Bias voltage: 8–12 VDC
• Output impedance: <100 Ω
• Maximum signal transmission distance: 300 m

Mechanical and environmental specifications

• Sensing design: shear mode
• Output direction: side-exit
• Standard mounting thread: M5
• Standard-model weight: 32 g
• Recommended mounting torque: ≈20 kgf·cm (≈2.0 N·m)
• Operating temperature: −40 to +120 °C
• Housing construction: fully enclosed metal housing

Standard accessories

• Sensor certificate with frequency-response curve
• One 1.5 m standard output cable
• One M5 connecting bolt
• Product packaging box

Optional mounting accessories

• Magnetic mounting base
• Insulated mounting base

Typical applications

• Equipment vibration monitoring where overhead clearance is limited
• Condition monitoring of motors, pumps, fans and gearboxes
• Vibration measurement of machine housings and structural components
• High‑g shock and transient‑vibration testing
• High-sensitivity, low-level vibration measurement

Technical specifications

• Model: BBVM-RS100
• Sensitivity (standard model): 100 mV/g
• Measurement range (standard model): ±50 g
• Frequency response (standard model): 0.3–12,000 Hz
• Available sensitivities/ranges: BBVM-RS10, RS20, RS25, RS50, RS100, RS500, RS1000
• Transverse sensitivity: ≤5% (≤3% typical)
• Discharge time constant: ≥0.2 s
• Sensor type: IEPE
• Supply voltage: 18–30 VDC; excitation 2–10 mA; typical 24 VDC, 4 mA
• Bias voltage: 8–12 VDC
• Output impedance: <100 Ω
• Maximum transmission distance: 300 m
• Sensing design: shear mode
• Output direction: side-exit
• Mounting thread: M5; recommended torque ≈20 kgf·cm (≈2.0 N·m)
• Weight (standard model): 32 g
• Operating temperature: −40 to +120 °C
• Housing: fully enclosed metal housing
• Standard accessories: certificate with frequency-response curve; 1.5 m cable; M5 bolt; packaging box
• Optional accessories: magnetic mounting base; insulated mounting base
