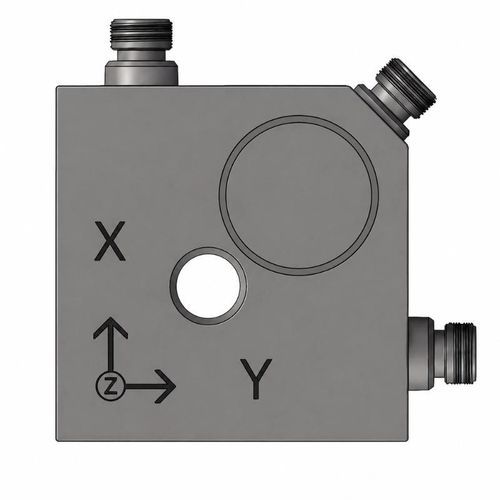

Triaxial accelerometer BBVM-3XS1000

piezoelectricIEPEshear

Product Overview
The BBVM-3XS1000 is a triaxial IEPE piezoelectric accelerometer designed for simultaneous measurement of vibration acceleration along the X, Y and Z axes on industrial machinery and structural components. Its planar-shear piezoelectric-ceramic sensing elements and stainless-steel housing enable reliable multidirectional monitoring. The BBVM-3XS1000 nominal sensitivity is 1,000 mV/g with a ±5 g measurement range and a frequency response of 0.5–5,000 Hz. Integrated IEPE conditioning, low-noise output and signal transmission up to 300 m simplify integration into condition-monitoring and vibration-test systems.

Key Features

• Simultaneous vibration acceleration measurement on three axes (X, Y, Z)
• Integrated IEPE signal conditioning for direct connection to data acquisition systems
• High sensitivity: 1,000 mV/g (BBVM-3XS1000) with ±5 g range
• Wide frequency response: 0.5–5,000 Hz
• Low output noise for improved measurement resolution
• Signal transmission distance up to 300 m
• Planar-shear piezoelectric design in a stainless-steel housing
• Independent side output for each axis (3 × M5)

Available Sensitivity and Measurement Range Options

• BBVM-3XS10 — 10 mV/g — ±500 g
• BBVM-3XS50 — 50 mV/g — ±100 g
• BBVM-3XS100 — 100 mV/g — ±50 g
• BBVM-3XS500 — 500 mV/g — ±10 g
• BBVM-3XS1000 — 1,000 mV/g — ±5 g

Performance Specifications

• Measurement: Vibration acceleration
• Number of axes: 3 (X, Y, Z)
• Frequency response: 0.5–5,000 Hz
• Mounted resonant frequency: ≈20 kHz
• Transverse sensitivity: ±5% (typ.)
• Maximum shock: 1,000 g
• Output noise: typ. <100 μg RMS

Electrical Specifications

• Sensor type: IEPE
• Supply voltage: 18–30 VDC
• Typical operating condition: 24 VDC, 4 mA
• Bias voltage: 8–12 V
• Output impedance: <100 Ω (typ.)
• Maximum signal transmission distance: up to 300 m
• Output configuration: Independent side output per axis
• Output connections: 3 × M5

Mechanical and Environmental Specifications

• Sensing material: Piezoelectric ceramic
• Internal design: Planar-shear
• Housing material: Stainless steel
• Dimensions: 29 × 29 × 17 mm
• Weight: 96 g
• Central mounting hole: Ø5.2 mm through-hole
• X/Y-axis threaded holes: 2 × M5
• M5 mounting torque: 20–30 kgf·cm (approx. 2.0–3.0 N·m)
• Operating temperature: -40 to +120 °C

Standard Accessories

• Sensor certificate with frequency-response curve
• Three 1.5 m standard output cables
• One M5 connecting bolt
• Product packaging box

Optional Mounting Accessories

• Magnetic mounting base
• Insulated mounting base

Typical Applications

• Triaxial vibration monitoring of industrial machinery
• Vibration measurement on machine housings and structural components
• Equipment condition monitoring and fault diagnostics
• Multidirectional vibration testing in laboratory and field environments

Technical Specifications

• Model: BBVM-3XS1000
• Manufacturer / Brand: Deep-Minds Ultrasonic
• Sensor type: IEPE piezoelectric (planar-shear)
• Sensitivity (BBVM-3XS1000): 1,000 mV/g
• Measurement range (BBVM-3XS1000): ±5 g
• Frequency response: 0.5–5,000 Hz
• Number of axes: 3 (X, Y, Z)
• Mounted resonant frequency: ≈20 kHz
• Transverse sensitivity: ±5%
• Maximum shock: 1,000 g
• Output noise: typ. <100 μg RMS
• Supply voltage: 18–30 VDC
• Typical operating condition: 24 VDC, 4 mA
• Bias voltage: 8–12 V
• Output impedance: <100 Ω (typ.)
• Maximum signal transmission distance: 300 m
• Output connections: 3 × M5 (independent side output for each axis)
• Dimensions: 29 × 29 × 17 mm
• Weight: 96 g
• Housing material: Stainless steel
• Sensing material: Piezoelectric ceramic
• Central mounting hole: Ø5.2 mm through-hole
• X/Y-axis threaded holes: 2 × M5
• M5 mounting torque: 20–30 kgf·cm (approx. 2.0–3.0 N·m)
• Operating temperature: -40 to +120 °C
• Included accessories: sensor certificate with frequency-response curve; three 1.5 m output cables; one M5 connecting bolt; packaging box
