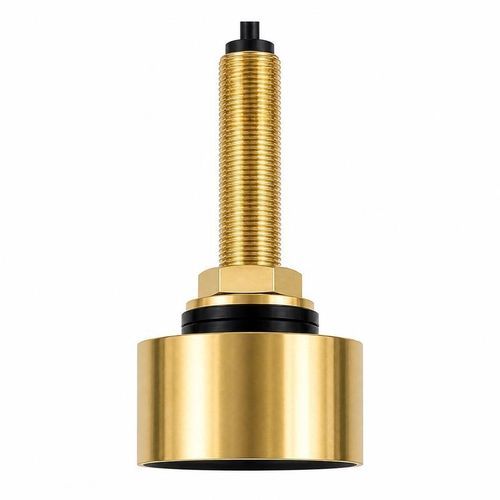

Double ultrasonic transducer BBUA-F50K200K-B

immersible

Overview
The BBUA-F50K200K-B is a dual-frequency fish-finding transducer combining 50 kHz and 200 kHz channels in a single housing. It is designed for fisheries acoustics, marine depth sounding and underwater target search. The documented recommended operating range for the 200 kHz channel is 0.6 to 120 m.

Applications

• Fish detection and fisheries-acoustics systems
• Marine depth sounding
• Underwater target search
• Integration into fisheries-acoustics equipment and vessels

Frequency-specific electrical data
Center frequencies: 200 kHz ±5% / 50 kHz ±5%
Recommended range (200 kHz): 0.6 to 120 m
Minimum impedance at 50 kHz: 180 Ω ±20%
Minimum impedance at 200 kHz: 210 Ω ±20%
Capacitance at 50 kHz: 3200 pF ±20% (measured at 1 kHz)
Operating (peak) voltage: <1500 Vpp
Half-power beam angle: 8.7° ±10% (‑3 dB)

Mechanical and environmental specifications
Operating temperature: -40 to +80 °C
Pressure rating: ≤10 kgf (≤1 MPa)
Ingress protection: IP68
Housing materials: Brass and ABS
Weight: 1110 g ±5%
Cable length: 10 m

Caractéristiques / spécifications techniques

• Model: BBUA-F50K200K-B
• Dual operating frequencies: 50 kHz and 200 kHz
• 200 kHz recommended operating range: 0.6–120 m
• Center frequency tolerance: ±5%
• Minimum impedance: 180 Ω ±20% (50 kHz); 210 Ω ±20% (200 kHz)
• Capacitance (at 1 kHz): 3200 pF ±20% (50 kHz)
• Peak operating voltage: <1500 Vpp
• Half-power beam angle: 8.7° ±10% (@ -3 dB)
• Operating temperature: -40 to +80 °C
• Pressure rating: up to 1 MPa (≤10 kgf)
• Ingress protection: IP68
• Housing: Brass and ABS
• Weight: ~1110 g (±5%)
• Cable: 10 m
