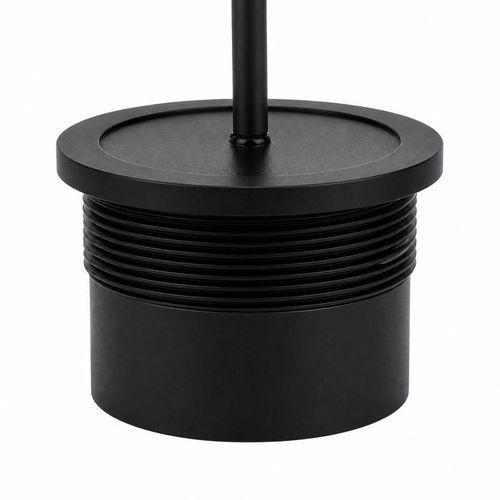

Immersible ultrasonic transducer BBDM-D55K

for level measurementmeasurementfor obstacle detection

Underwater ranging across a 3–500 m reference span
The BBDM-D55K is a 55 kHz ultrasonic transducer for ranging and depth measurement in water. Its reference range is 3–500 m. Designed for integration in ROVs, AUVs, docking systems and fixed monitoring installations where a compact, IP68-rated acoustic sensor is required.

Acoustic and environmental characteristics
The half-power beamwidth at -3 dB is 26.6° ±10%. The transducer operates between -40 and +80°C, is rated IP68 and has a pressure limit of ≤10 kgf (≈1 MPa). Minimum impedance, capacitance and peak voltage parameters support integration with standard ultrasonic driving electronics.

Technical specifications

• Model: BBDM-D55K
• Center frequency: 55 kHz ±5%
• Recommended range: 3–500 m
• Minimum impedance: 700 Ω ±20%
• Capacitance: 1800 pF ±20% at 1 kHz
• Operating voltage: Peak voltage <1500 Vpp
• Operating temperature: -40 to +80°C
• Pressure rating: ≤10 kgf or 1 MPa
• Half-power beamwidth: 26.6° ±10% at -3 dB
• Protection rating: IP68

Target applications

• Underwater ranging and depth measurement
• Obstacle avoidance for underwater robots and AUVs
• Distance measurement in tanks and aquatic facilities
• Underwater target detection and monitoring
