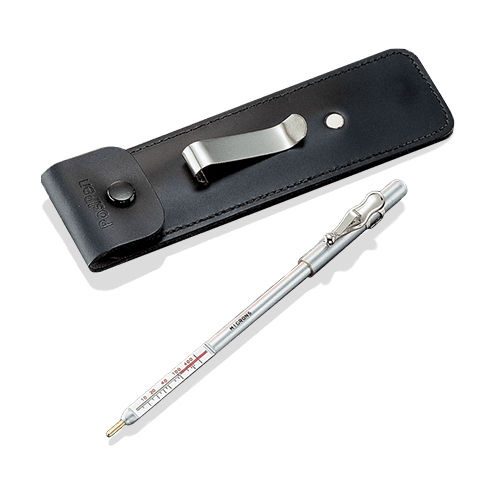

Pen-type thickness gauge PosiPen®
portablecoatingsteel

pen-type thickness gauge
pen-type thickness gauge
pen-type thickness gauge
pen-type thickness gauge
Add to favorites
Compare this product


Characteristics

Type
portable
Applications
coating, steel
Technology
magnetic
Other characteristics
handheld, precision, ultra-rugged, pen-type
Measuring range

Max.: 500 µm

Min.: 5 µm

Description

Magnetic Pull-Off Coating Thickness Gage PosiPen has a very small, unique magnet which can be placed with pin-point accuracy on extremely small parts, and on peaks and valleys. Ideal for measuring non-magnetic coatings such as paint, enamel, plating, and hot-dip galvanizing on steel. • - Can be used on small, hot or hard-to-reach surfaces • - Easy-to-Use • - Lightweight - easy to carry, just like a ball point pen • - Rugged - not affected by mechanical shock, acid, oil, water and dust • - No user adjustment required • - Highly wear resistant probe tip for long life and continuous accuracy • - Certificate of Calibration showing traceability to PTB included (Long Form) Conforms to ASTM D7091/B499, ISO 2808 and others Features Simple • - Easy-to-Use • - Lightweight - easy to carry, just like a ballpoint pen Durable • - No batteries / electronics • - Rugged - not affected by mechanical shock, acid, oil, water and dust Accurate • - No user adjustment required • - Certificate of Calibration traceable to PTB included • - Highly wear resistant probe tip for long life and continuous accuracy • - Each PosiPen has two scales, mils (inch) and microns (metric) • - Conforms to National and International Standards including ASTM D7091/B499, ISO 2808 and others Used For: • - Small, hot or hard-to-reach surfaces • - Spot Checks - conveniently fits in a shirt pocket • - Hot Sprayed Coatings Ideal For: • - Refineries, petrochemical plants • - Platers - electroplating, chrome, zinc, galvanizing • - Powder coaters
