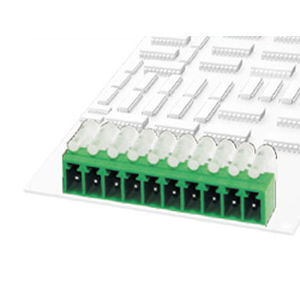

Plug-in terminal block 15EDGRC-LD-3.81screwless
Add to favorites
Compare this product
Characteristics
- Mounting
- plug-in
- Connection
- screwless
- Current
7 A, 8 A
- Nominal voltage
250 V, 300 V
Description
Electrical
Standard UL IEC
Rated impulse voltage
2.5KV
Mechanical
Ambient temperature
-40°C~+120°C
Dimensions
Pitch
3.81mm(.150")
Poles
2P-24P
Material
Housing
PBT,UL94V-0
Pin header
Brass,Tin plated
Catalogs
No catalogs are available for this product.
