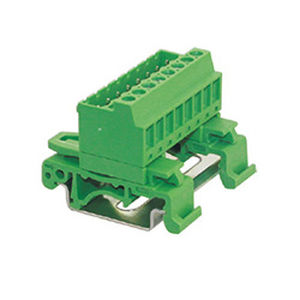

Plug-in terminal block 2EDG-UDB-5.08screw connectionbipolar
Add to favorites
Compare this product
Characteristics
- Mounting
- plug-in
- Connection
- screw connection
- Other characteristics
- bipolar
- Cross-section
2.5 mm²
(0 in²)- Current
15 A, 20 A
- Nominal voltage
300 V, 320 V
Description
Electrical
Standard
UL IEC
Wire range
28-12AWG 2.5mm2
Withstanding voltage
4KV
Mechanical
Torque
0.5Nm(4.43Lb-In.)
Ambient temperature
-40°C~+105°C
Dimensions
Pitch
5.08mm(.200")
Poles
2P-24P
Material
Housing
PA66,UL94V-0
Screws
M2.5,steel,Cr3+ Zn plated
Contact
Phosphor bronze
Cage
Brass,Ni plated
