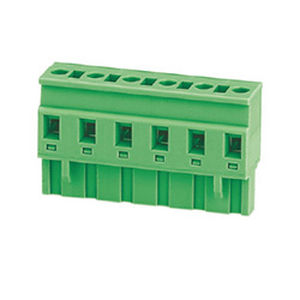

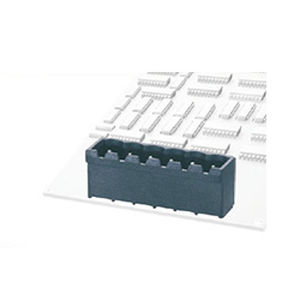

Plug-in terminal block 2EDGVC-THR-5.08screwlessbipolar
Add to favorites
Compare this product
Characteristics
- Mounting
- plug-in
- Connection
- screwless
- Other characteristics
- bipolar
- Current
15 A, 20 A
- Nominal voltage
300 V, 320 V
Description
Electrical
Standard
UL IEC
Withstanding voltage
4KV
Mechanical
Ambient temperature
-40°C~+130°C
Dimensions
Pitch
5.08mm(.200")
Poles
2P-12P
Material
Housing
LCP,UL94V-0
Pin header
Red Brass,Tin plated
Catalogs
No catalogs are available for this product.
