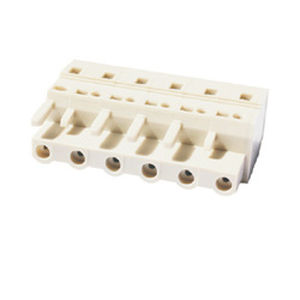

Plug-in terminal block 8EDGK-7.5/7.62springbipolar
Add to favorites
Compare this product
Characteristics
- Mounting
- plug-in
- Connection
- spring
- Other characteristics
- bipolar
- Cross-section
Max.: 2.5 mm²
(0 in²)Min.: 0.2 mm²
(0 in²)- Current
15 A, 20 A
- Nominal voltage
300 V, 400 V
Description
Electrical
Standard
UL IEC
Wire range
22-14AWG 0.2-2.5mm2
Withstanding voltage
4KV
Mechanical
Ambient temperature
-40°C~+105°C
Strip length
8mm
Dimensions
Pitch
7.5mm(.295") 7.62mm(.300")
Poles
2P-12P
Material
Housing
PA66,UL94V-0
Contact
Copper
Wire guard
Stainless steel
