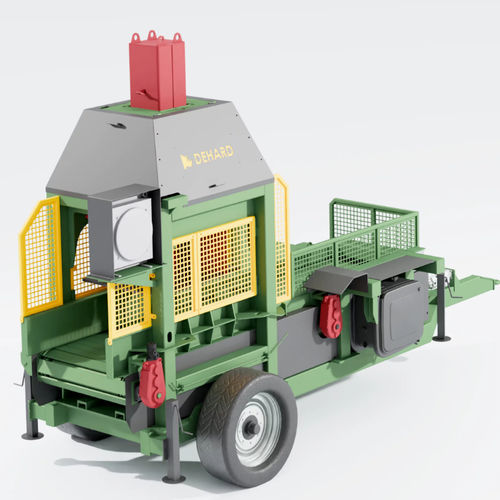

Vertical log splitter DVM-SPLIT-900

Product Details Introduction: The DVM-SPLIT-900 is a mobile vertical splitter designed to vertically split logs with diameters from 20 to 90 cm with remarkable efficiency and precision. The two cross-cut blades in wear-resistant steel provide optimal durability and precise splitting. Optimisation of performance and productivity: thanks to the use of high precision components and advanced hydraulic systems, the DVM-SPLIT-900 performs a rapid, stable and reliable splitting cycle, thus maximising production whilst reducing downtime. Structural robustness and mechanical endurance: designed with high-resistance materials and subject to intensive loading tests, the DVM-SPLIT-900 guarantees optimal resistance to dynamic constraints, ensuring extended durability even in the most demanding environments. Advanced technology for optimal precision: thanks to an optimised design, our machines always perform precise cutting, have controlled energy consumption, and reduce maintenance to a minimum. Technical Specifications: - Wood diameter: From 20 to 90 cm - Length of logs: From 10 to 50 cm - Splitting: Vertical 40T - Commands: Hydraulic manual - Kindling production: Yes - Wood holding system in the splitter: Hydraulic press - Splitter actuators: 200 bars - Drive: Power take-off / diesel - Motor power: 50Cv min. power take-off, or 35 kW diesel engine - Oil volume: 200L - Electric: General PLC + safety relay or safety PLC - Oil flow rate: 150,00 - Chassis: Non-approved agricultural - OPTION: Remote control - OPTION: Approved road chassis
