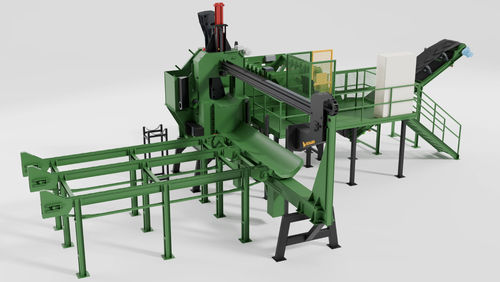

Horizontal log splitter DH-PRO-800

Product Overview: The DH-PRO-800 is part of Dehard's range of horizontal splitting machines. Robust and efficient, it is specifically designed for firewood producers processing logs with diameters from 8 to 80 cm. Two independent splitting blades in wear-resistant steel perform optimal splitting. A single blade can be commanded to split small round logs with a minimum diameter of 8 cm. Two models designed to adapt to each requirement: - DH-PRO-800-T: Equipped with a feed belt with a double lug chain, this model carries the log towards a saw, which can be: - A chainsaw - A 130 cm circular saw combined with a chainsaw As an option, a hydraulic stop can measure the log and therefore optimise woodscrap management. - DH-PRO-800-P: This model uses a trough on a push-pull rod for greater speed and efficiency. When the end of the log is almost reached, the push-pull rod automatically moves backwards, the trough descends and the next log is put into position while the previous log is still being sawn. This system guarantees that the process operates continuously, reducing downtime. The push-pull rod automatically measures the length of the log, thus optimising woodscrap management. This version is equipped with a 130 cm diameter circular saw combined with a chainsaw. Unrivalled efficiency for exceptional performance: - Productivity: The DH-PRO-800 is able to process large quantities of wood in the shortest possible time, ideal for industries and large-scale production operations. - Robustness: Designed for intensive use, it withstands the most demanding operating conditions. - Power: Our hydraulic power packs developed in-house guarantee high production rates, accompanied by motors sourced from major manufacturers. - Advanced automation: Thanks to smart systems, the machine reduces end-of-stroke losses and guarantees a high-quality finished product. - Remote management: All anomalies are detected rapidly by an integrated system, thus facilitating maintenance and reactivity. - Optimal safety: Full automation of the DH-PRO-600 ensures optimal protection for operators and accessories. - Personalisation: Each configuration can be modified to adapt to your specific requirements, such as processing longer logs, cleaning billets, or adding other outfeed conveyors. Technical Specifications: - Wood diameter: From 8 to 80 cm - Length of logs: From 18 to 100 cm - Cutting system: Chain or chain + circular - Splitting: Horizontal 2 x 22T - Commands: Automatic - Drive: Electric - Kindling production: No - Wood loading system: 15 mm steel feed belt or trough with push-pull rod for length adjustment - Wood holding system in the saw: Hydraulic clamps or roller - System for tilting wood towards the splitter: Lifting tray or turnstile - Wood holding system in the splitter: Hydraulic press - Cutters: 2 independent cross-cut blades in wear-resistant steel - Type of chain: 404 18H - Type of circular saw: Carbide blade - Splitter actuators: 200 to 300 bars - Motor power: 55 kW min. - Oil volume: 900L min. - Electric: General PLC + safety relay or safety PLC - Oil flow rate: From 210 to 360 - OPTION: Remote control - OPTION: Push-pull rod for length adjustment on the feed belt
