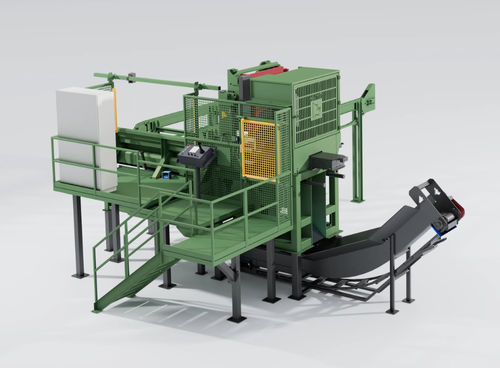

Log splitter DG-PRO-400

Product Details: The DG-PRO-400 has been specifically developed to optimise firewood production using wood from 8 to 40 cm. The wood is placed on a feed belt and is moved automatically through the saw. A measuring roller descends onto the wood and when it comes into contact with a hydraulic stop, determines the length of the wood and holds it in place before it is cut by the circular saw. Its system of a patented push-pull rod then splits the wood on two splitting heads, 2/4/6 or 2/4/8, positioned opposite each other. The push-pull rod therefore never returns empty, and the cycles are exceptionally short. Depending on the diameter of the log and the desired billet size, the catch pan is positioned vertically in front of the relevant splitting head. A retractable drawer removes the woodscrap. The billets fall into a billet scraper positioned under the machine and are moved to the container of your choice. Maximum performance and optimal efficiency: - Productivity: the DG-PRO-400 is capable of processing a large volume of wood with small diameters within record time, with just one operator. - Robustness: designed for intensive use, it withstands the most demanding operating conditions. - Power: our hydraulic power packs developed in-house guarantee high production rates, accompanied by motors sourced from major manufacturers. - Advanced automation: thanks to smart systems, the machine reduces end-of-stroke losses and guarantees a high-quality finished product. - Remote management: all anomalies are detected rapidly by an integrated system, thus facilitating maintenance and reactivity. - Optimal safety: full automation of the DG-PRO-400 ensures optimal protection for operators and accessories. - Personalisation: do you need to process longer logs, clean billets or add other outfeed conveyors? Each configuration can be modified to adapt to your specific requirements. Technical Specifications: - Wood diameter: From 8 to 40 cm - Length of logs: From 25 to 50 cm - Cutting system: Circular - Splitting: Double splitting head 2/4/6 22T - Commands: Automatic - Drive: Electric - Kindling production: No - Wood loading system: 15 mm steel feed belt + hydraulic stop - Wood holding system in the saw: Roller - Wood holding system in the splitter: Motorised catch pan - Cutters: double splitting heads 2/4/6 or 2/4/8 in wear-resistant steel - Type of circular saw: Carbide blade - Splitter actuators: 200 to 300 bars - Motor power: 45 kW - Oil volume: 800L - Electric: General PLC + safety relay or safety PLC - Oil flow rate: 250,00 - OPTION: Remote control
