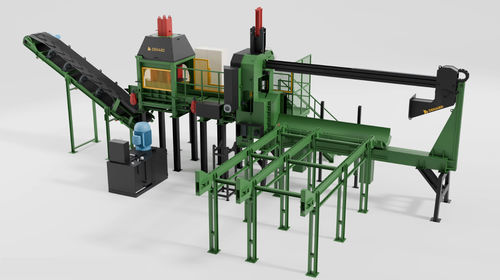

Vertical log splitter DV-PRO-900

Product Overview: The DV-PRO-900 is a high-performance, versatile vertical splitting machine designed for firewood producers. It is capable of processing logs with diameters ranging from 20 to 90 cm and can also produce kindling with any machine from the DV-PRO range. Versions Available: - DV-PRO-900-T: Equipped with a feed belt with a double lug chain, this model carries the log towards a saw, which can be: - A chainsaw - OR a 130 cm diameter circular saw combined with a chainsaw Optional: A hydraulic stop can measure the log for optimized woodscrap management. - DV-PRO-900-P: Uses a trough on a push-pull rod for improved speed and efficiency. When the end of the log is almost reached, the push-pull rod automatically moves backwards, the trough descends, and the next log is positioned while the previous log is still being sawn. The push-pull rod automatically measures the log length for optimized woodscrap management. Standard equipment includes a 130 cm diameter circular saw combined with a chainsaw. Key Benefits: - Productivity: Processes large quantities of logs quickly, suitable for industrial and large-scale production. - Robustness: Designed for intensive use and withstands demanding conditions. - Power: In-house developed hydraulic power packs and motors from major manufacturers ensure high production rates and optimal performance. - Automation: Smart systems minimize end-of-stroke losses and guarantee clean, precise cuts. - Remote Management: Integrated system rapidly detects anomalies for efficient issue resolution. - Safety: Full automation ensures optimal protection for operators and accessories. Personalization: The machine can be adapted for longer logs, woodscrap recovery with cleaning scrapers, or integration of a control pod, tailored to specific requirements. Technical Specifications: - Wood diameter: From 20 to 90 cm - Length of logs: From 10 to 50 cm - Cutting system: Chain or chain + circular - Splitting: Vertical 40T - Commands: Automatic - Drive: Electric - Kindling production: Yes - Wood loading system: 15 mm steel feed belt or trough with push-pull rod for length adjustment - Wood holding system in the saw: Hydraulic clamps or roller - Wood holding system in the splitter: Hydraulic press - Cutters: 2 cross-cut blades in wear-resistant steel - Type of chain: 404 18H - Type of circular saw: Carbide blade - Splitter actuators: 200 to 300 bars - Motor power: 55 kW min. - Oil volume: 900L min. - Electric: General PLC + safety relay or safety PLC - Oil flow rate: From 210 to 360 - OPTION: Multi-guillotine system - OPTION: Remote control - OPTION: Push-pull rod for length adjustment on the feed belt
