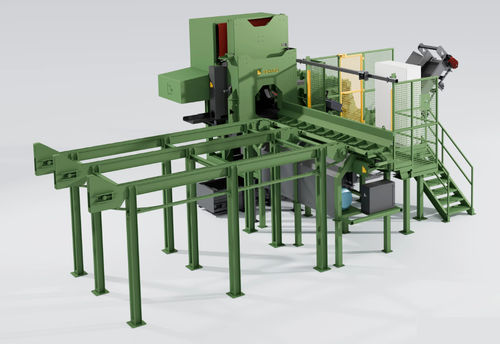

Horizontal log splitter DGH-PRO-650

Product Overview: The DGH-PRO-650 is a combination of the DG-PRO-400 machine paired with a horizontal splitter similar to the splitter on the DH-PRO-600 machine. It is capable of processing logs with diameters from 8 to 65 cm. The wood is placed on a feed belt and is moved automatically towards the saw. A measuring roller descends onto the wood and, in contact with a hydraulic stop, determines the length of the wood and holds it in place before it is cut by the circular saw. For wood less than 40 cm in diameter, logs fall onto a catch pan on which a patented push-pull rod moves the wood simultaneously to two splitting heads, 2/4/6 or 2/4/8, positioned opposite each other. Thanks to this innovative mechanism, the push-pull rod never returns empty, thus optimising production cycles and guaranteeing unrivalled speed. Depending on the diameter of the log and the desired billet size, the catch pan is positioned vertically in front of the relevant splitting head. If the wood measures between 40 and 65 cm in diameter, it is automatically carried towards the horizontal splitter. A retractable drawer removes the woodscrap, whilst the billets fall into a billet scraper positioned under the machine, which moves them directly towards the container of your choice. Multiple high-performance benefits: - Productivity: Capable of processing a large volume of wood with diameters from 8 to 65 cm within record time, with just one operator. - Robustness: Designed for intensive use, it withstands the most demanding operating conditions. - Power: Hydraulic power packs developed in-house guarantee high production rates, accompanied by motors sourced from major manufacturers. - Advanced automation: Smart systems reduce end-of-stroke losses and guarantee a high-quality finished product. - Remote management: All anomalies are detected rapidly by an integrated system, facilitating maintenance and reactivity. - Safety: Full automation ensures maximum protection for operators and accessories. - Personalisation: Configurations can be modified to adapt to specific requirements, such as processing longer logs, cleaning billets, or adding other outfeed conveyors. Technical Specifications: - Wood diameter: From 8 to 65 cm - Length of logs: From 18 to 50 cm - Cutting system: Circular - Splitting: Double splitting head 2/4/6 22T + Horizontal 2 x 22T - Commands: Automatic - Drive: Electric - Kindling production: No - Wood loading system: 15 mm steel feed belt + hydraulic stop - Wood holding system in the saw: Roller - System for tilting wood towards the splitter: Drawer - Wood holding system in the splitter: Motorised catch pan + hydraulic press - Type of circular saw: Carbide blade - Splitter actuators: 200 to 300 bars - Motor power: 45 kW - Oil volume: 800L - Electric: General PLC + safety relay or safety PLC - Oil flow rate: 250,00 - OPTION: Remote control
