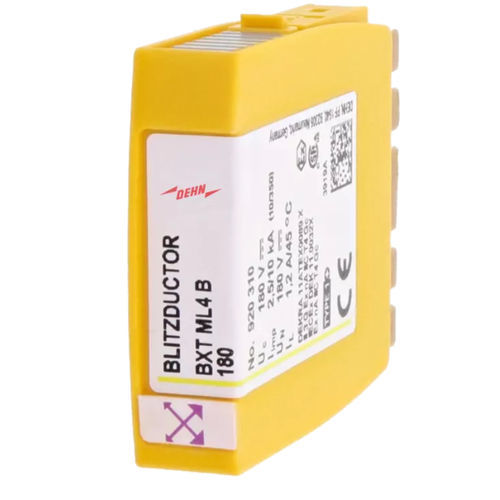

Type 1 surge arrester BXT ML4 B 180

for telecom networkscombined4-pole

Combined lightning current and surge arrester Maximum discharge capacity for two-pole, three-pole or four-pole interfaces Capable of carrying lightning currents up to 10 kA (10/350 µs) Low voltage protection level, capable of protecting terminal equipment With integrated LifeCheck monitoring Arrester testing during operation Detection of pre-damaged arresters High signal availability thanks to preventive replacement of arresters SPD consists of a protection module and a base part Vibration and shock-tested for safe operation All protection components integrated in the protection module Two universal base parts with / without signal disconnection Minimum space requirements, 4 single lines or 2 pairs over a width of 12 mm Space-savings four-pole lightning current arrester module with LifeCheck feature for almost all applications. For use in connection with downstream Q surge arresters or combined lightning current and surge arresters with a lower or equal voltage level. If LifeCheck detects thermal or electrical overload, the arrester has to be replaced. This status is indicated contactlessly by the DEHNrecord LC / SCM / MCM reader.
