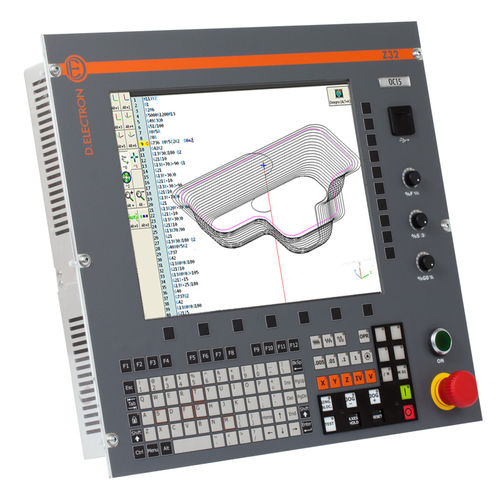

Operator terminal with touch screen OC15

with keyboardpanel-mountembedded

Compact operator video terminal, includes alphanumeric keyboard and machine pushbutton panel: TFT 15” Color Touch Screen Display USB port available on the front frame QWERTY type membrane keyboard with 97 keys and numeric keypad 4 CNC cycle control pushbuttons (START, STOP, HOLD, RESET) Potenziometri Overrides Rapido, Lavoro, Mandrino 2 Input Volantini elettronici Line Drive 5Volt 24 optoisolated digital inputs and 8 0.5A 24Vdc outputs available for pushbuttons and control panel lamps 1 porta USB su pannello frontale e = USB port available on the front frame 3 internal USB ports available Connected to a central unit located in an electrical cabinet with VGA cable, USB Extender and optical fiber Maximum installation distance from the central unit: 30 meters
