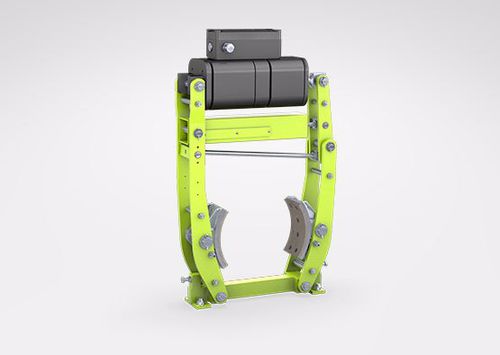

Drum brake EBH series

springmanual releaseadjustable

The EBH is a powerful drum brake with automatic wear adjustment and braking torques from 140 to 3500 Nm. It is mainly used in slewing gears, trolleys, gantrys and conveyor belts. MAIN FEATURES According to DIN 15435 standard Continuously adjustable brake spring enclosed in a square tube with torque scale Self-lubricating bushings mean brakes are easy to service, no greasing necessary Equal air gap by adjustable lever stops Different thrusters Aluminum brake shoes acc. DIN 15435 Bl. 2 with non-asbestos, organic linings Shoe clamping springs which prevent brake shoes from tilting when released Pins and main spindle of stainless steel Uncoated parts and screws of stainless steel OPTIONS Automatic wear compensator Proximity switch release control Proximity switch pad wear Proximity switch hand release Manual release lever with or w/o interlock Monitoring systems (e.g. VSR/CMB) Brake drums with hubs or couplings Weather execution (special paint and coating) for outdoor use
