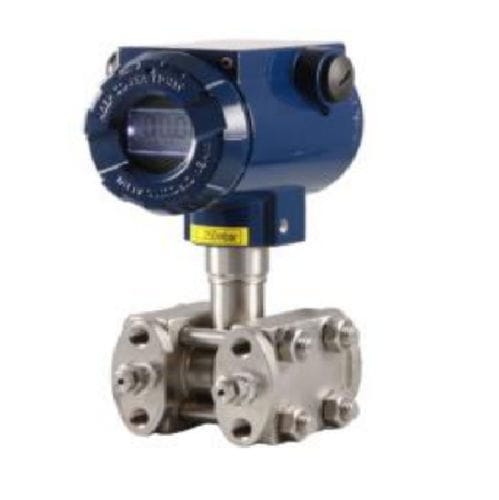

Relative pressure transmitter DPR-2000G
differentialpiezoresistivemembrane

relative pressure transmitter
relative pressure transmitter
Add to favorites
Compare this product


Characteristics

Pressure type
relative, differential
Technology
piezoresistive, membrane
Output signal
HART, analog
Other characteristics
smart, with display, IP66, IP67
Pressure range

Min.: -0.1 bar (-1.45 psi)

Max.: 1 bar (14.5 psi)

Description

DPR-2000G Differential Pressure Transmitter DPR-2000G D-Series HART Communication The model DPR-2000G Differential Pressure Transmitter comes fitted with a range of process connections and is suitable for measuring pressures from -100mbar to 100mbar with maximum working pressures of up to 1bar. The DPR-2000G SMART Differential Pressure Transmitters are suitable for measuring differential pressure of gases. Typical applications include the measurement of blast pressure, chimney draughts or pressure / underpressure in furnace chambers. The active sensing element is a piezoresistive silicon sensor separated from the medium by a diaphragm and by a specially selected type of manometric liquid. The casing is made of cast aluminium alloy or 316 stainless steel with degree of protection IP66/IP67. The design of the casing enables the use of a local display, rotation of the display by 90°, rotation of the casing by 0–355° relative to the sensor, and a choice of cable direction. ATEX certified for use in Zone 0/20 Hazardous Areas and available with 316 wetted parts materials, the DPR-2000G SMART Differential Pressure Transmitters are suitable for use in a wide range of applications whether for measuring differential pressure, level or flow.
