Relative pressure transmitter D35

differentialmembranepiezoresistive

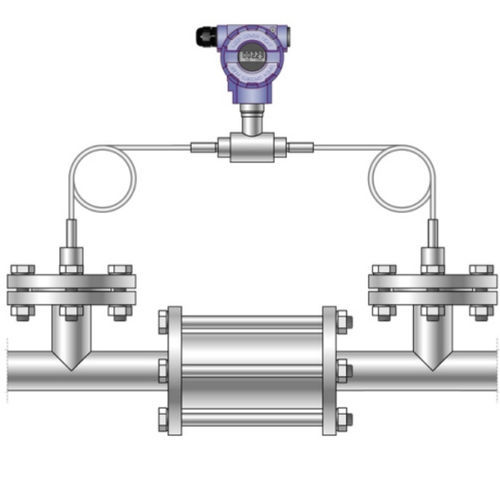

Aluminium or stainless steel enclosure, for all applications The model D35 Differential Pressure Transmitter comes fitted with two diaphragm seals and is suitable for measuring pressures from -100mbar to 70bar with maximum working pressures up to 420bar. The D Series SMART Differential Pressure Transmitter is suitable for a wide range of applications for measuring differential pressure, level and flow. Key Features • ATEX – Flameproof and Intrinsically Safe IECEx – Flameproof and Intrinsically Safe • Fully HART ® compatible • 4-20mA analogue with digital communications • Fully welded sensor guarantees tightness of oil systems for long term usage • Programmable range, zero shift, characteristic and damping ratio with local panel keys • Linearisation of output signal on 20 point curve for specific application is available • Write protection option through DKAP-03 communicator, ‘D-Soft’ program or software using library EDDL FEATURES & BENEFITS Cost-Effective The D-Series offers customers a high specification and comprehensive product range at very competitive prices Backlit LCD Display A backlit display facilitates local monitoring in light deficient environments by enhancing display visibility Easily Configurable The D-Series transmitters are easily set up and configured either using a standard HART communicator or via Delta’s user-friendly ‘D-Soft’ communication software Accuracy The D-Series transmitters have a standard accuracy of 0.075% with even better accuracy being available upon request
