PRECISION AND POWER FOR WORK SITES
IGBT chopper control system
Denyo has a reputation globally as a pioneer in outdoor power sources. Denyo products are used not only in construction and manufacturing, but also at oil & gas, and mining work sites. Denyo offers the excellent performance and ruggedness unique to Japanese products, and have a track record of use in extremely cold wilderness and extremely hot desert.
COMPACT DESIGN
Denyo uses compact designs which are equipped with advanced functions in minimally sized chassis. Denyo engine welders are small and light compared to other brands of engine driven welders as Denyo engine welders are easy to transport and offer a high degree of placement freedom at work sites.
Specifications

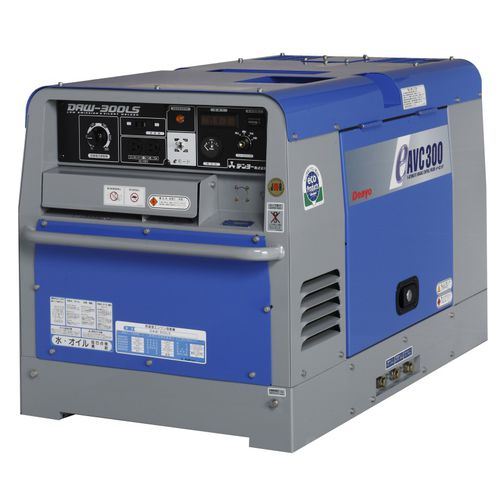

Model: DAW-300LS
Rated output: 8.7kW
Rated Current: 280amp
Voltage: 31.2V
Welding Current Range: 30-300A
Rated duty: 50%
Applicable electrode: Ø2.0 - 6.0mm
AC Power
Frequency: 50/60Hz
Rated output: 3kVA
Voltage: 100/110/120/200/220/230/240V
Phase: 1-Phase, 2 wire
Power Factor: 1.0
Engine: Kubota D722-K3A
Fuel: Diesel
Fuel Consumption: 2.1L/h
Tank Capacity: 19L
Emission Regulation: Tier 3(Japanese regulation)
Dimension L×W×H: 1,270×680×740mm
Weight: 300kg
Sound Level (From 7m): 50Hz 64dB / 60Hz 64dB
Options
●Contact your supplier for non-standard requests.
●Remote Controller
●Earth Leakage relay
