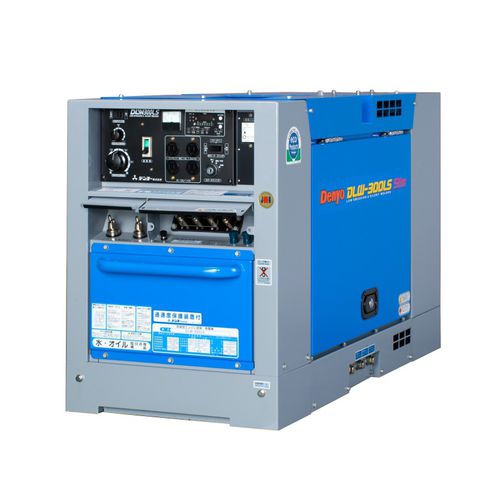

MMA welder DLW-300LS

electrodethree-phasewith generator set

PRECISION AND POWER FOR WORK SITES IGBT chopper control system Denyo has a reputation globally as a pioneer in outdoor power sources. Denyo products are used not only in construction and manufacturing, but also at oil & gas, and mining work sites. Denyo offers the excellent performance and ruggedness unique to Japanese products, and have a track record of use in extremely cold wilderness and extremely hot desert. COMPACT DESIGN Denyo uses compact designs which are equipped with advanced functions in minimally sized chassis. Denyo engine welders are small and light compared to other brands of engine driven welders as Denyo engine welders are easy to transport and offer a high degree of placement freedom at work sites. Specifications Model: DLW-300LS Rated Output: 50Hz 7.9kW / 60Hz 8.74kW Rated Current: 50Hz 260amp / 60Hz 280amp Voltage: 50Hz 30.4V / 60Hz 31.2V Welding Current Range: 50Hz 30-280 / 60Hz 30-300A Rated duty: 100% Applicable electrode: Ø2.0 - 6.0mm AC Power Frequency: 50/60Hz Rated output: 10.4/11.4kVA Voltage: 200/220/230/240V or 380/440V Phase: 3-Phase, 4 wire Power Factor: 0.8 Engine: Yanmar 3-3TNM68G Fuel: Diesel Fuel Consumption: 1.96/2.34L/h Tank Capacity: 36L Emission Regulation: Tier 3(Japanese regulation) Dimension L×W×H: 1,410×560×770mm Weight: 379kg Sound Level (From 7m): 50Hz 63dB / 60Hz 65dB Options ●Contact your supplier for non-standard requests. ●Remote Controller ●Spark arrester
