DUAL OPERATOR WELDING
IGBT chopper control system
Being able to have two people to use a single welding machine will surely and greatly improves work efficiency. Denyo engine driven welders can be used for welding by two people at the same time. This helps reduce purchasing costs for welding machines and contributes significantly to work efficiency improvements.
A WIDE VARIETY OF WELDING METHODS
Denyo's engine driven welders support not only stick welding, but also CC/CV properties and AC output. By combining Denyo's engine welders with various welding units, they can support a wide range of welding methods, such as Shielded Metal Arc Welding: SMAW(STICK), Flux Cored Arc Welding: FCAW, and more.
Specifications

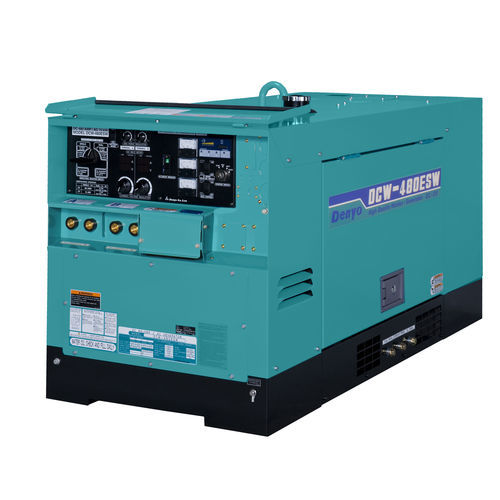

Model: DCW-480ESW
Frequency: 50Hz
Rated Output: CC:17.1kW / CV:16.4kW
Rated Current: 450amp
Voltage: CC:38V / CV:36.5V
Welding Current Range:
- Single: CC:60-480A
- Dual: CC:30-240A
Rated duty: 60%
AC Power
Frequency: 50Hz
Rated output: 15kVA
Voltage: 200/220/380/400/415/440V
Phase: 3-Phase, 4 wire
Power Factor: 0.8(Lagging)
Engine: Kubota V1505
Fuel: Diesel
Tank Capacity: 45L
Dimension L×W×H: 1,540×720×885mm
Weight: 500kg
Options
●Contact your supplier for non-standard requests.
●Remote Controller
●Spark arrester
●Earth Leakage relay
●Voltage Reduction Device
●Oil pressure gauge, water temperature gauge, Battery Charging Ammeter
●DC Ammeter, DC Voltmeter, AC Voltmeter
