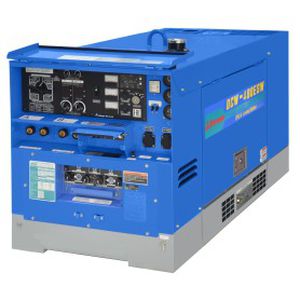

MIG-MAG welder DCW-480ESW EvoⅢ

MMAelectrodecored wire

PERMITTED / DESIGNED FOR CIS MARKET ONLY IGBT chopper control system DUAL OPERATOR WELDING Being able to have two people to use a single welding machine will surely and greatly improves work efficiency. Denyo engine driven welders can be used for welding by two people at the same time. This helps reduce purchasing costs for welding machines and contributes significantly to work efficiency improvements. A WIDE VARIETY OF WELDING METHODS Denyo's engine driven welders support not only stick welding, but also CC/CV properties and AC output. By combining Denyo's engine welders with various welding units, they can support a wide range of welding methods, such as Shielded Metal Arc Welding: SMAW(STICK), Flux Cored Arc Welding: FCAW, and more. Specifications Model: DCW-480ESW EvoⅢ Limited Edition Rated Output: Single CC:17.1kW / CV:16.4kW, Dual CC:7.5x2kW / CV:6.6x2kW Rated Current: Single 450A, Dual 250x2A Voltage: Single CC:38.0V / CV:36.5V, Dual CC:30×2V CV:26.5×2V Welding Current Range: Single CC:60-500A, Dual CC:30-280A Rated duty: Single:60%, Dual:100％ AC Power Frequency: 50Hz Rated output: 15kVA Voltage: 380V Phase: 3-Phase, 4 wire Power Factor: 0.8 Engine: Kubota V1505 Fuel: Diesel Tank Capacity: 45L Dimension L×W×H: 1,540×720×885mm Weight: 525kg Options ●Contact your supplier for non-standard requests. ●Remote Controller ●Spark arrester ●Earth Leakage relay ●Voltage Reduction Device ●Oil pressure gauge, water temperature gauge, Battery Charging Ammeter ●DC Ammeter, DC Voltmeter, AC Voltmeter
