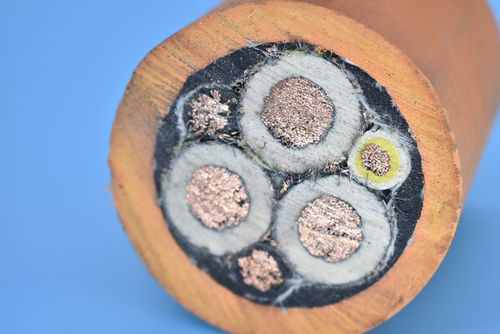

Power cable NTSCGEWOU SeriesDINinsulatedstranded
Add to favorites
Compare this product
Characteristics
- Type
- power
- Format
- DIN
- Protection
- insulated
- Configuration
- stranded
- Core material
- copper
- Applications
- for industrial applications
- Material of the insulation
- PUR, polyethylene
- Nominal voltage
4,000 V
Max.: 1,000 V
Min.: 600 V
- Temperature
Max.: 80 °C
(176 °F)Min.: -40 °C
(-40 °F)
Description
Flexiable low voltage reeling cable for application under high and very high mechanical stresses.
Conductor: Fine stranded bare/tinned copper
Insulation: PE (polyethylene)
Core color: TBD acc. to DIN 47100 standard.
Outer sheath: PUR (polyurethane)
Sheath color: Grey(RAL 7001), Black(RAL 9005) or Orange(RAL 2003)
Max. tensile load on the conductor: 15N/mm2
Min.bending radius: Acc.to VDE 0298 part 3
Travel speed: Basket operation:160m/min
