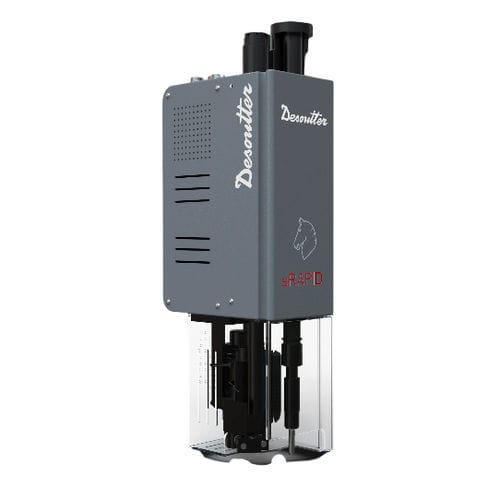

Fully-automatic screwing unit eRAPID

electriccomputer-controlledfor screw assembly

Overview
eRAPID is a fully electric screw-feeding and tightening module designed to replace pneumatic feeders in automated assembly. It combines a compact, integrated form factor with real-time data capture and selectable tightening modes to support precision assembly and Industry 4.0 integration.

Key benefits

• Electric drive for simplified integration and reduced reliance on compressed air
• Shorter cycle times and higher productivity compared with pneumatic solutions
• Real-time data capture and tracking to support quality control and traceability
• Energy-efficient operation (page claims indicate significant energy savings vs pneumatic solutions)
• Easy setup and programming via an intuitive Web UI
• Compatibility with robots, cobots and linear axes for automated lines

Main features

• Compact integrated design with standardized modules and single-side connections
• Smooth, ultra-precise motion: real-time depth measurement and smart thrust control
• Smart Stroke with unlimited programmable tightening positions and multi-stage speed control
• Patented ScrewManager for continuous screw handling (one screw ready while another is tightened)
• Floating head to ensure alignment and protect product surfaces
• Web-based UI for intuitive configuration and diagnostics

Key figures

• Screw compatibility: M3 – M6
• Maximum torque: 12 Nm
• Typical cycle time: < 3 s
• Weight (module, tool not included): 3.5 kg
• Energy savings (page claims): ~50% vs traditional RAPID / up to 52% vs pneumatic systems (page sections also reference up to 70% in some claims)

Operational & integration notes

• Designed for precision assembly tasks with selectable Speed and Thrust tightening modes
• Captures process data to support ISO-compliant traceability and analytics
• Single-face connections simplify installation, maintenance and integration
• Compatible with common controllers and the Desoutter ecosystem (e.g., AXON controller)

Claims & environmental data

• Estimated unit carbon footprint cited on the page: 2,661 kgCO₂e (page-provided figure)
• Multiple energy-efficiency statements appear on the product page (approx. 50% / 52% / up to 70% lower energy versus pneumatic solutions depending on section)

Technical specifications

• Model: eRAPID
• Brand: Desoutter
• Screw sizes: M3 – M6
• Max. torque: 12 Nm
• Cycle time: < 3 s (typical)
• Module weight: 3.5 kg (without tool)
• Drive: fully electric
• Tightening modes: Speed and Thrust
• Motion controls: real-time depth measurement, smart thrust control, multi-stage speed control
• Workflow: ScrewManager for continuous operation
• Interface: Web UI for setup and monitoring
• Integration: robots, cobots, linear axes; single-side connections
