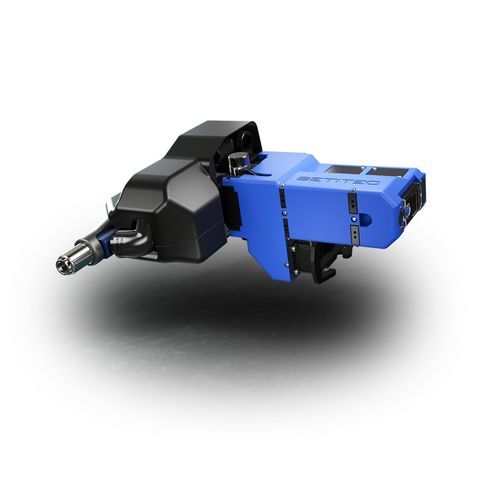

Pneumatic end-effector R-EVO

Product overview
The R-EVO single-function robotic end effector is a modular solution for light automation focused on drilling, temporary fastening and riveting in aerospace and industrial assembly. The system combines a controller, cable, motor and quick-change head modules with process-aware software to enable precise control, real-time monitoring and full traceability.

Why choose the R-EVO?

• Productivity & quality — precise, repeatable drilling and fastening cycles that reduce rework and operator dependence.
• Flexible & scalable — modular single-function heads adapt to multiple process requirements and cobot platforms.
• Process-aware & integrable — software-driven process control and open communication protocols for data integration.

R-EVO loop elements

• Controller — manages motor functions, head modules, safety and external communications.
• Cable — supplies power and signal transmission between controller and motor.
• Motor — two-speed drive controlling rotation, feed, clamping and direction.
• Head module — quick-change single-function modules for drilling, temporary fastener insertion/removal, squeeze riveting and sensing.

Motor, interfaces & software

• Motor control — two-speed gearbox for high-speed/low-torque and low-speed/high-torque; rotation motor: 48 V | 70 A max; feed motor: 48 V | 5 A max.
• Pneumatic control — pneumatic grippers for head change; valves for head change and lubrication/air management.
• Module interface — quick-release mechanical interface, auto shutoff valves (lubrication & air), alignment pins for TCP repeatability, spring-loaded splined gears for automatic engagement, RFID for head recognition.
• EVO software suite — create and optimize drilling/assembly cycles, configure tool and maintenance strategy, live visualization and process curves (EVO Config).
• Options — vacuum connector, dispensing tube receiver, electric contacts; main motor assembly weight ~2.9 kg (typical).

Head modules specifications (summary)
Concentric Collet | 4 000 RPM (winch) / 12 000 RPM (no winch) | 6 N·m (winch) / 2 N·m (no winch) | 15 mm/s / 2 000 N force | Thick drill jigs required | 2.1 kg
J-Clamp | 4 000 RPM (winch) / 12 000 RPM (no winch) | 6 N·m (winch) / 2 N·m (no winch) | 15 mm/s / 2 000 N force | 3 mm stroke / 500 N max / 950 N | 2.25 kg
C-Clamp | 4 000 RPM (winch) / 12 000 RPM (no winch) | 6 N·m (winch) / 2 N·m (no winch) | 15 mm/s / 2 000 N force | 600 N clamping | 2.35 kg
Crowfoot | 4 000 RPM (winch) / 12 000 RPM (no winch) | 6 N·m (winch) / 2 N·m (no winch) | 15 mm/s / 2 000 N force | 600 N | 2.35 kg
Sensing nose | 4 000 RPM (winch) / 12 000 RPM (no winch) | 6 N·m (winch) / 2 N·m (no winch) | 15 mm/s / 2 000 N force | 3 mm stroke / 500 N max | 1.75 kg
Passive normality | 4 000 RPM (winch) / 12 000 RPM (no winch) | 6 N·m (winch) / 2 N·m (no winch) | 15 mm/s / 2 000 N force | 3 mm stroke / 500 N max / ±1.5° angular tolerance | 2.7 kg

Temporary fastener heads (summary)
Inline head | Speed: 3 000 RPM (with reducer) | Torque: 2 N·m (no reducer) / 8 N·m (with reducer) | Insertion process control via stroke & thrust monitoring and torque control | Stopping fork in front when fastener loaded / intermediate fork for insertion & retraction | 1.6 kg
Angle head | Speed: 3 000 RPM (with reducer) | Process control similar to inline head (stroke & thrust monitoring; torque control) | Weight varies by configuration

Squeezer heads (summary)
Squeezer 1 | Rivet insertion speed 15 mm/s; squeeze up to 45 000 N (example 6.4 mm Al rivet) | Process control via squeeze force and stroke/thrust monitoring | Weight: 4.6 kg
Squeezer 2 | Rivet insertion speed 15 mm/s; squeeze up to 25 000 N (example 4.1 mm Al rivet) | Process control via squeeze force and stroke/thrust monitoring | Weight: 4.6 kg

Data traceability

• Continuous tracking of torque, thrust and stroke values for drilling, insertion and tightening operations.
• All process data stored for traceability and analysis (drilling/tightening curves) to support process optimization and quality control.
• Setup and advanced process control provided through EVO Config software.

Technical specifications

• Model/series: R-EVO
• Controller power: 230 V / 13 A / 3 000 W
• Motor feeds: Rotation motor 48 V (70 A max); Feed motor 48 V (5 A max); Lubricant motor 48 V (5 A max)
• Equipment pressure (air & lubricant): 0–6 bar
• External communication: Open protocol / MQTT
• Safety: E-STOP Category 3, Performance Level d (PL d)
• Options: StackLight, vacuum information output, vacuum connector, dispensing tube receiver, electric contacts
• Lubricant flow: 0–35 ml/min; Lubricant tank: 1.5 L
• Main motor assembly weight (typical): ~2.9 kg
• Head module weights: ~1.75–4.6 kg depending on module
