Remote-controlled screwing unit MULTI

automatedPC-controllablemodular

Overview
The MULTI is a modular multi-spindle tightening system designed for confined stations and machine-mounted installations. It supports remote operation and traceability via the CONNECT platform and can control from 1 up to 40 spindles (synchronized or independent).

Designed for

• Compact assembly stations and machine integration
• High-density multi-point tightening tasks
• Centralized process control and traceability

Main benefits

• Minimize station footprint and wiring complexity
• Maintain production continuity with fast restart and hot-swap capabilities
• Centralize management of tightening assets and results via CONNECT

Key features

• Modular architecture: scalable from 1 to 40 spindles
• Compact footprint: example 0.2 m²; less than 1 m width for a 4x10 configuration
• Fast restart: station unit restart in about 30 seconds
• Tool hot-swap: M-Drive enables ~6 s swap time
• Optimized cable management to simplify installation and maintenance
• Remote control and integration with CONNECT for asset and traceability management

System components (overview)

• M-PowerBox: compact all-in-one power box, single 380–480 V 3ph input; daisy-chain up to 4 units to synchronize up to 4x10 tools
• M-ModuRack: centralized distribution for power, communication and safety to reduce cabling
• M-SafetyBox: core safety management and CONNECT connectivity; 24 VDC output, Ethernet, eStop Cat.3 PL e, Quick Stop, fieldbus safety support (e.g. ProfiSafe)

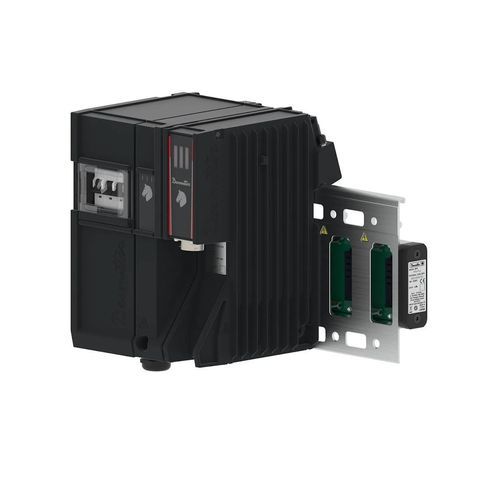

• M-Drive: manages Desoutter EFM fixtured spindles; fanless cooling, frontal cable access, one-screw service access, tool hot-swap ~6 s
• EFM fixtured spindles: premium spindles delivering 1–2000 Nm for high precision and repeatability

Traceability & quality
MULTI uses the CONNECT platform for live result capture (torque, angle, curves), result transfer/storage and automated NOK action processes. Supported tightening strategies include torque, angle, curve analysis, seating and yield-point detection for complex assemblies.

Use cases & adaptability

• Compact cobot cells and machine-mounted stations
• Wheel and drivetrain assemblies and other high-density tightening applications
• Scalable installations that require centralized safety and process control

Technical specifications

• Model: MULTI
• Spindles supported: 1 to 40 (modular)
• Example footprint: ~0.2 m² (4x10 < 1 m)
• Restart time: ~30 seconds (station unit)
• M-PowerBox input: 380–480 V / 3ph (50/60 Hz), daisy-chain up to 4 units
• M-SafetyBox: 24 VDC output, Ethernet, eStop Cat.3 PL e, Quick Stop, fieldbus safety support
• M-Drive: fanless cooling, front access to tool cable, hot-swap ~6 s
• EFM torque range: 1–2000 Nm
• Platform: CONNECT for asset management, traceability and maintenance UI
