Air rotary union 1005-020-019
for vacuumhydraulicaluminium

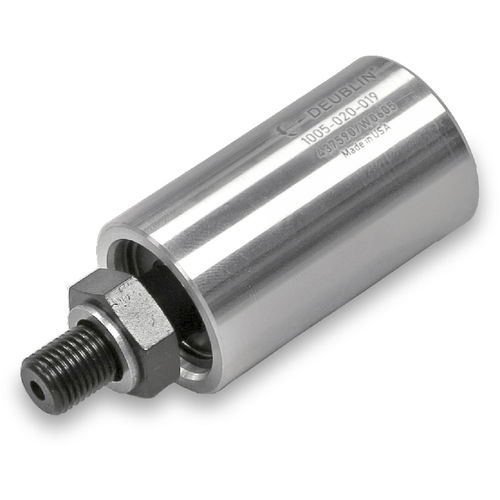

Air rotary union - 1005-020-019 - DEUBLIN COMPANY - for vacuum / hydraulic / aluminium
Air rotary union - 1005-020-019 - DEUBLIN COMPANY - for vacuum / hydraulic / aluminium
Air rotary union - 1005-020-019 - DEUBLIN COMPANY - for vacuum / hydraulic / aluminium - image - 2
Air rotary union - 1005-020-019 - DEUBLIN COMPANY - for vacuum / hydraulic / aluminium - image - 3
Add to favorites
Compare this product

Characteristics

Medium
for air, for vacuum
Applications
hydraulic
Material
aluminium, stainless steel, carbon steel
Other characteristics
radial, with seal, screw-in
Rotational speed

Max.: 3,500 rpm
(21,991.15 rad.min-1)

Min.: 0 rpm
(0 rad.min-1)

Pressure

150 psi, 1,000 psi

Nominal size

0.125 in

Description

Monoflow design Self-supported rotating union Radial housing connection Balanced mechanical seals Seal combinations: Carbon Graphite/Hardened Tool Steel or Carbon Graphite/Silicon Carbide Felt oiler in seal cavity for air service Oiler for relubrication (3 to 5 drops/month) Low torque design Weight-optimized design Aluminum housing; stainless steel or carbon steel rotor, depending on model Ball bearings lubricated for life Media Vacuum, Hydraulic Oil, Air Rotor Connection 3/8"-24 UNF RH Air Flow 10 CFM Air Temperature 250 °F Hydraulic Oil Flow 1.8 GPM Hydraulic Oil Temperature 250 °F Vacuum Pressure -13.75 psi Vacuum Temperature 250 °F
