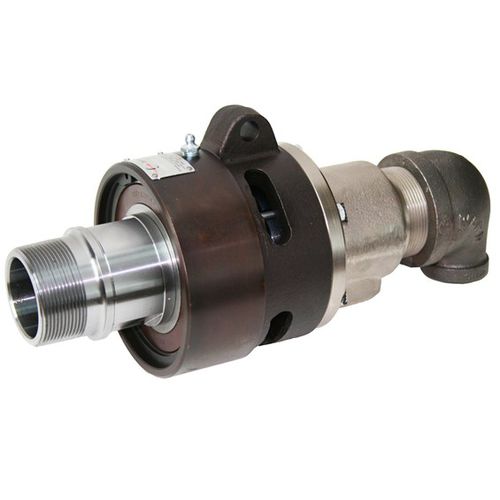

Water rotary union 6200-001-137
2-passagecast ironsteel

Add to favorites

Compare this product

Go to the DEUBLIN COMPANY website for more information

Characteristics

Medium

for water

Number of passages

2-passage

Material

steel, cast iron

Other characteristics

radial, with seal, screw-in, dual-flow

Rotational speed

Max.: 750 rpm
(4,712.39 rad.min-1)

Min.: 0 rpm
(0 rad.min-1)

Pressure

Max.: 10 bar
(145 psi)

Min.: 0 bar
(0 psi)

Nominal size

2 in

Description

Monoflow and duoflow design Self-supported rotating union Radial housing connection Balanced mechanical seals Steel-banded floating seal Easy and quick replacement of sealing components Full-media flow Vent slots Cast iron housing Steel rotor flanged/threaded Seal Combinations: Carbon Graphite/Tungsten Carbide standard, Silicon Carbide/Tungsten Carbide for severe conditions such as poor water quality Media Water Housing Connection Water Max. Temperature 121 °C
