Water rotary union 6400-154-330
for steam2-passagesteel

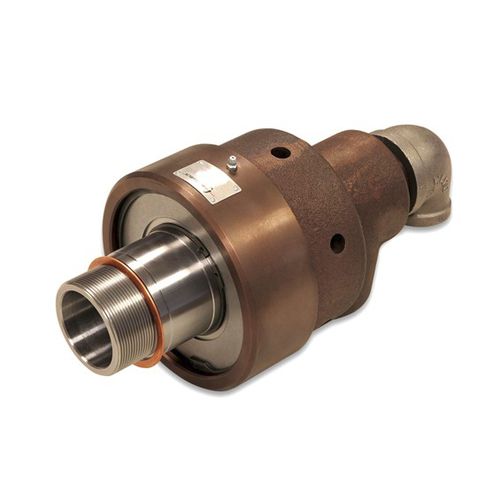

Water rotary union - 6400-154-330 - DEUBLIN COMPANY - for steam / 2-passage / steel
Water rotary union - 6400-154-330 - DEUBLIN COMPANY - for steam / 2-passage / steel
Water rotary union - 6400-154-330 - DEUBLIN COMPANY - for steam / 2-passage / steel - image - 2
Water rotary union - 6400-154-330 - DEUBLIN COMPANY - for steam / 2-passage / steel - image - 3
Add to favorites
Compare this product

Characteristics

Medium
for water, for steam
Number of passages
2-passage
Material
steel, cast iron
Other characteristics
radial, with seal, screw-in, dual-flow
Rotational speed

Max.: 750 rpm
(4,712.39 rad.min-1)

Min.: 0 rpm
(0 rad.min-1)

Pressure

Max.: 150 psi

Min.: 0 psi

Nominal size

2.5 in

Description

Monoflow and duoflow design Self-supported rotating union Radial housing connection Balanced mechanical seals Steel-banded floating seal Easy and quick replacement of sealing components Full-media flow Vent slots Cast iron housing Steel rotor flanged/threaded Seal Combinations: Carbon Graphite/Tungsten Carbide standard, Silicon Carbide/Tungsten Carbide for severe conditions such as poor water quality Media Water Rotor Connection 276.2 mm Flange, 120.625 mm pilot Water Max. Temperature 135 °C
