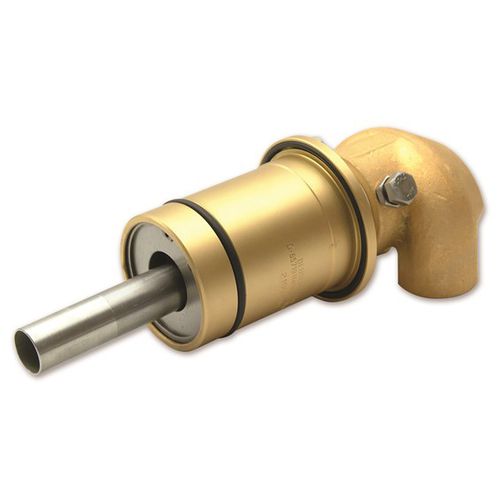

Water rotary union 2420-023-1372-passagebrassstainless steel
Add to favorites
Compare this product
Characteristics
- Medium
- for water
- Number of passages
- 2-passage
- Material
- brass, stainless steel
- Other characteristics
- radial, with seal, dual-flow, flange, shaft-mounted
- Rotational speed
Max.: 100 rpm
(628.32 rad.min-1)Min.: 0 rpm
(0 rad.min-1)- Pressure
10 bar
(145 psi)- Nominal size
1 in
Description
Monoflow and duoflow design
In-the-shaft mounted
Self-supported rotating union
Flanged housing or mounted with retaining plate
Balanced mechanical seals
Seal combination: Silicon Carbide/Silicon Carbide
Brass housing and elbow
Stainless steel rotor and supply pipe
Engineered sleeve bearing
Full-media flow
Easily field repairable
Media
Water
Rotor Connection
O-ring, 45.9 mm pilot
Water Max. Temperature
121 °C
