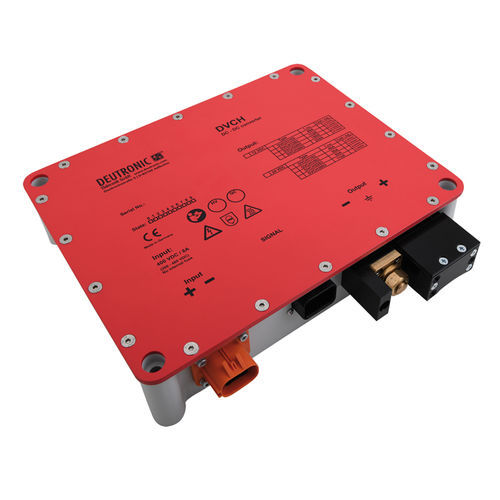

Metal package DC/DC converter DVCH1503 series

regulatorhigh-voltagevehicle

DC/DC converter for hybrid and electric vehicles For hybrid and electric vehicles, electronic components such as high-voltage energy storage, electric motors etc. have an important role. Depending on the degree of electrification of the vehicle, components from conventional drive concepts are replaced by more efficient ones. Thus, in hybrid or electric vehicles, the generator can be saved, which supplies the 12V/24V/48V electrical system. Instead, a DC/DC converter is required, which changes the voltage of the high-voltage energy storage device to the voltage of the electrical system. The DVCH converter meet the requirements occurring in a vehicle and also impress with extremely low construction volume and very high efficiency. High efficiency – typ. 94% Short-circuit, no load and over temperature protection Parallel connectable HV-Interlock CAN (controllable output voltage) E1 approval for car * Order option (see spreadsheet): …/x/…: Accessory variant …/0/… without accessory …/20/… with heatsink More on request …/yyy: Setting (Standard setting or customized) …/000 DC-Standard CAN 2.0A …/001 DC-Standard CAN J1939 Customer-specific parameterization on request
