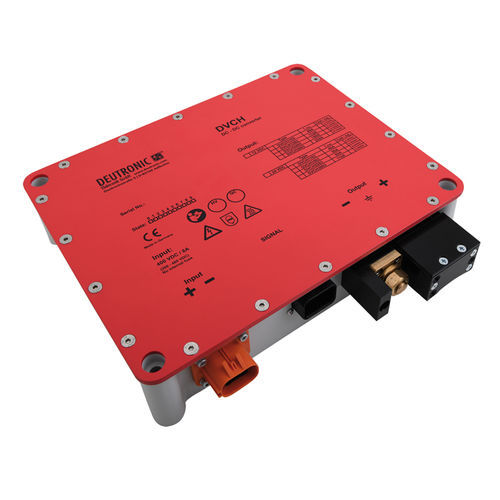

High-voltage DC/DC converter DVCH1503-700 series
galvanically-isolatedregulatedmetal package

High-voltage DC/DC converter - DVCH1503-700 series - DEUTRONIC - galvanically-isolated / regulated / metal package
High-voltage DC/DC converter - DVCH1503-700 series - DEUTRONIC - galvanically-isolated / regulated / metal package
Add to favorites
Compare this product

Characteristics

Electrical characteristics
high-voltage, galvanically-isolated, regulated
Configuration
metal package
Applications
vehicle
Other characteristics
single-output, wide input range, switching, voltage output, CE, IP67
Input voltage

Min.: 400 V

Max.: 900 V

Output voltage

Min.: 2 V

Max.: 30 V

Power

1,500 W

Description

For hybrid and electric vehicles, electronic components such as high-voltage energy storage, electric motors etc. have an important role. Depending on the degree of electrification of the vehicle, components from conventional drive concepts are replaced by more efficient ones. Thus, in hybrid or electric vehicles, the generator can be saved, which supplies the 12V/24V/48V electrical system. Instead, a DC/DC converter is required, which changes the voltage of the high-voltage energy storage device to the voltage of the electrical system. High efficiency – typ. 94% Short-circuit, no load and over temperature protection Parallel connectable HV-Interlock CAN (controllable output voltage) * Order option (see spreadsheet): …/x/…: Accessory variant …/0/… without accessory …/20/… with heatsink More on request …/yyy: Setting (Standard setting or customized) …/000 DC-Standard CAN 2.0A …/001 DC-Standard CAN J1939 Customer-specific parameterization on request
