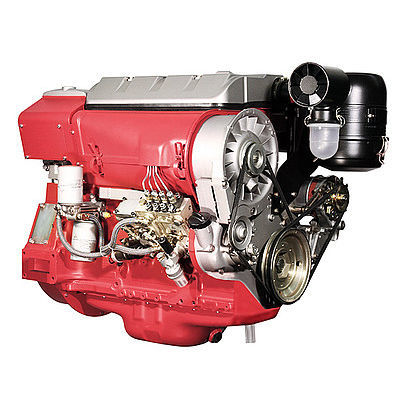

Diesel engine D 914 L3
6-cylinder4-cylinder3-cylinder

diesel engine
diesel engine
diesel engine
Add to favorites
Compare this product


Characteristics

Type
diesel
Number of cylinders
6-cylinder, 4-cylinder, 3-cylinder, 5-cylinder
Technology
turbocharged, in-line
Product applications
for agricultural applications
Other characteristics
air-cooled, compact, water-cooled
Torque

204 Nm, 273 Nm, 337 Nm, 375 Nm, 650 Nm (150.4627 ft.lb)

Power

43 kW, 58 kW, 72.5 kW, 86.5 kW, 129.9 kW (58.464 hp)

Rotational speed

Min.: 650 rpm (4,084.07 rad.min-1)

Max.: 2,300 rpm (14,451.33 rad.min-1)

Description

Engine for agricultural machinery. Air-cooled 3-cylinder naturally aspirated in-line-engine. 6-cylinder turbocharged, charge air cooled Displacement: 1.1 liter/cylinder Modular system with single cylinder units Advanced injection and combustion system Worldwide approved: more than 4.5 million engines in use 100 percent power take-off on the flywheel side and on the face end Possibility of power take-off for hydraulic pumps and compressor Only few maintenance points Compact power-pack with low weight For agricultural machinery 43 - 12 9.9 kW|57.7 - 174.2 hp at 2300 min-1|rpm EU Stage IIIA / US EPA Tier 3  Air-cooled 3 to 6-cylinder naturally aspirated engines in inline arrangement.  6-cylinder with turbocharging, chargeair cooled.  Capacity: 1.1 l/cylinder, modular system with single cylinders.  The robust engine design allows worldwide operation even with high sulphur fuels.  Low noise emissions due to acoustically optimized components with very smooth running and high durability  Highly efficient injection and combustion system ensures optimum engine performance at low consumption.  Flywheel and end 100% power takeoff possibilities PTO drives for hydraulic pumps and compressor possible, only a few maintenance points, long oil change intervals.  Very compact engine design reduces the installation costs.  Best cold starting properties even under extreme conditions.  The engines in the power range < 56 kW meets to the US EPA Tier 4 i.
