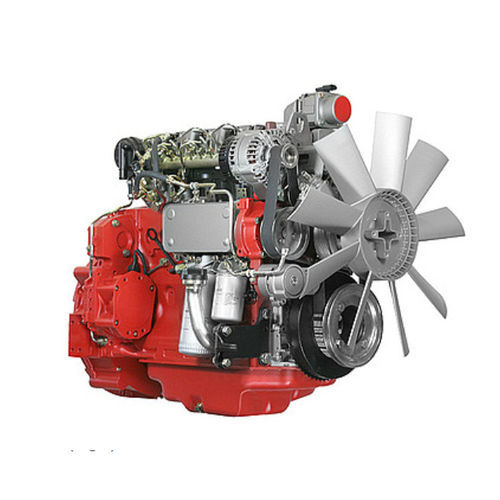

Diesel engine TCD 2012 L4
6-cylinder4-cylinderturbocharged

diesel engine
diesel engine
Add to favorites
Compare this product


Characteristics

Type
diesel
Number of cylinders
6-cylinder, 4-cylinder
Technology
turbocharged, common rail, in-line
Product applications
for agricultural applications
Other characteristics
water-cooled
Torque

520 Nm, 810 Nm (383.5323 ft.lb)

Power

103 kW, 155 kW (140.041 hp)

Rotational speed

Min.: 650 rpm (4,084.07 rad.min-1)

Max.: 2,400 rpm (15,079.64 rad.min-1)

Description

Engine for agricultural machinery. Modern, water-cooled 4-cylinder in-line engine. Turbocharging with charge air cooler Robust engine with high power density Power take-off options integrated into the gear drive Electronic engine control with intelligent adaptation to drive management High-pressure fuel injection with DEUTZ common rail system (DCR®) 4-cylinder optional with mechanical injection system up to 88 kW For agricultural machinery 103 - 155 kW|138 - 208 hp at 2400 min-1|rpm EU Stage IIIA / US EPA Tier 3  Water-cooled 4 and 6-cylinder inline engines with turbocharging and charge air cooling  The extremely compact engine design with structural oil pan and a customeroriented, modular system of optional add-on parts reduce the installation costs and increase the number of applications.  The powerful DEUTZ Common-Rail (DCR®) injection system and the electronic engine control (EMR 3) with intelligent link to the drive management ensure optimum engine performance at low fuel consumption.  The 4-cylinder is also available with a mechanical injection system in the power range up to 88 kW.  Low noise emissions due to acoustically optimized components with very smooth running and high durability.  Long oil change intervals and easy changing of the engine fluids reduce the running costs and increase the availability of the machinery.  100% power take-off at flywheel and front end.  Best cold starting performance even under extreme conditions.  The engines meet the requirements of the EU Stage IIIA and US EPA Tier 3.
