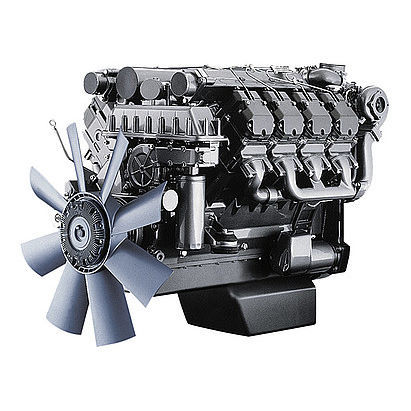

Diesel engine TCD 2015 series6-cylinder8-cylinderturbocharged
Add to favorites
Compare this product
Characteristics
- Type
- diesel
- Number of cylinders
- 6-cylinder, 8-cylinder
- Technology
- turbocharged
- Cooling system
- water cooling, air cooling
- Emissions level
- Euro 3, Euro 2
- Other characteristics
- 4-stroke, compact
- Power
360 kW, 440 kW
(489.46 hp, 598.23 hp)- Torque
1,990 Nm, 2,650 Nm
(1,467.748677 ft.lb, 1,954.539696 ft.lb)- Rotational speed
Max.: 2,100 rpm
(13,194.6891 rad.min-1)Min.: 0 rpm
(0 rad.min-1)- Displacement
11.9 l, 15.9 l
(3.144 gal, 4.2 gal)- Weight
1,020 kg, 1,250 kg
(2,248.72 lb, 2,755.78 lb)- Length
832 mm, 1,006 mm
(32.8 in, 39.6 in)- Width
932 mm
(36.7 in)- Height
1,152 mm, 1,169 mm
(45.4 in, 46 in)
Description
Modern water-cooled four stroke 8-cylinder V-engine.
Water-cooled turbocharger and exhaust manifolds.
PTOs gear driven.
Modern injection system with mechanical governor.
Electronical governor for gen set application.
Charge-air-cooler by engine cooling liquid.
Innovative DEUTZ Multi-Parallel-Cooling System.
Compact design.
