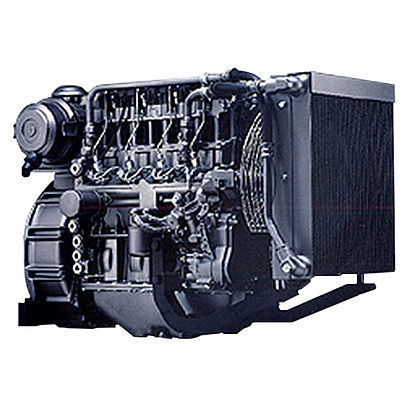

Diesel engine BF 4 M 2011 series
4-cylinderturbochargedin-line

Diesel engine - BF 4 M 2011 series - DEUTZ - 4-cylinder / turbocharged / in-line
Diesel engine - BF 4 M 2011 series - DEUTZ - 4-cylinder / turbocharged / in-line
Diesel engine - BF 4 M 2011 series - DEUTZ - 4-cylinder / turbocharged / in-line - image - 2
Add to favorites
Compare this product

Characteristics

Type
diesel
Number of cylinders
4-cylinder
Technology
turbocharged, direct injection, in-line
Product applications
for generator sets, fuel
Cooling system
air cooling
Other characteristics
compact, oil-cooled
Power

Max.: 47 kW
(63.9 hp)

Min.: 37 kW
(50.31 hp)

Rotational speed

1,500 rpm, 1,800 rpm
(9,424.778 rad.min-1, 11,309.7336 rad.min-1)

Displacement

3.1 l
(0.819 gal)

Weight

286 kg
(630.52 lb)

Length

1,080 mm
(42.5 in)

Width

649 mm
(25.6 in)

Height

787 mm
(31 in)

Description

Oil-cooled 4-cylinder naturally aspirated in-line engine available also with turbocharging and optional charge air cooling. Direct injection with single injection pumps and optional electronic governor. Minimised running costs due to low maintenance need and little wear. High reliability combined with durability. No corrosion or cavitation due to oil cooling and lubrication. Low fuel consumption due to optimised combustion. Long oil change intervals of up to 1000 hours. A very good load response ensures an immediate power supply.
